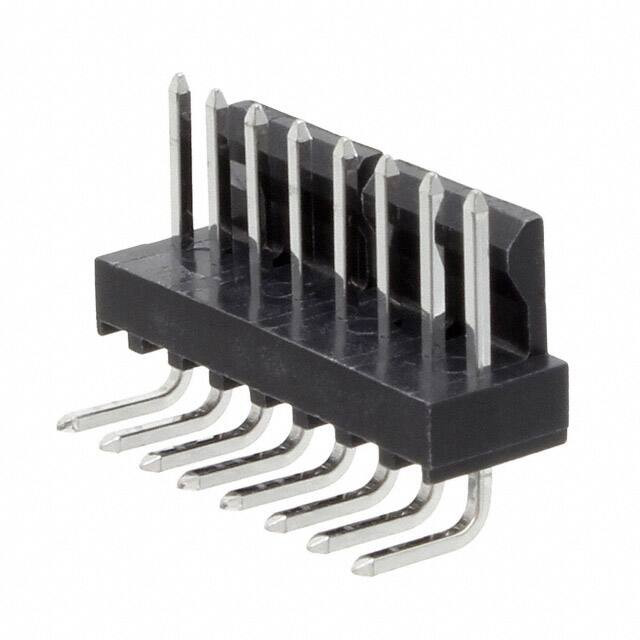

1718570008

Specifications

Parça Durumu

Active

Fabrika Tedarik Süresi

11 Weeks

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Ambalaj

Bulk

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2013

Terminal Adımı

2.54mm

Contact Type

Male Pin

Mounting Option1

LOCKING

Pozisyon Sayısı

8

Reliability

COMMERCIAL

Sıra Sayısı

1

Body Depth

0.442 inch

Plating Thickness

60μin

Contact Finish Thickness Mating

60.0μin 1.52μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Post

60.0μin 1.52μm

Shrouding

Shrouded - 1 Wall

Seri

KK 171857

Contact Length Post

0.100 2.54mm

ECCN Kodu

EAR99

Insulation Height

0.250 6.35mm

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Contact Shape

Square

Reference Standard

UL, CSA

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

2.502 N

Body Breadth

0.25 inch
