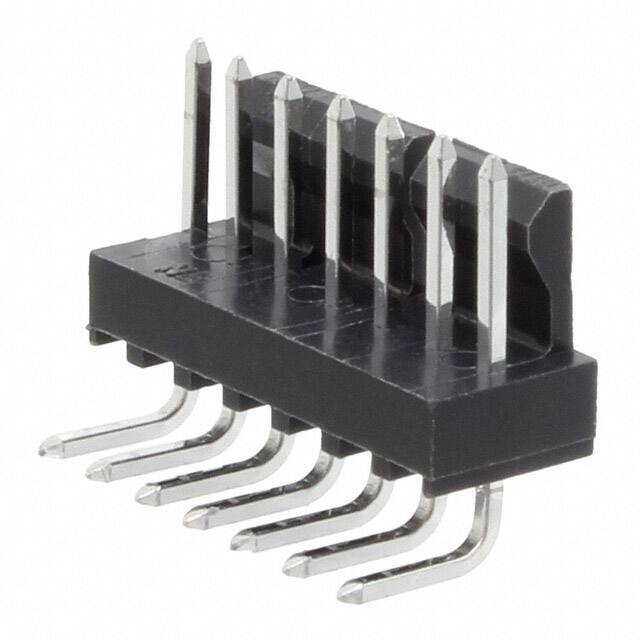

1718570007

Specifications

Contact Shape

Square

Reference Standard

UL, CSA

Style

Board to Board or Cable

Contact Lengthmating

0.265 6.73mm

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Contact Length Post

0.100 2.54mm

Shrouding

Shrouded - 1 Wall

Operating Temperature Max

80°C

Seri

KK 171857

Insulation Color

Black

Fastening Type

Friction Lock

Material Flammability Rating

UL94 V-2

Insulation Height

0.250 6.35mm

Pozisyon Sayısı

7

Reliability

COMMERCIAL

Sıra Sayısı

1

Terminal Adımı

2.54mm

Mounting Option1

LOCKING

Contact Type

Male Pin

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

60.0μin 1.52μm

Montaj Tipi

Through Hole, Right Angle

Contact Materials

Brass

Body Depth

0.442 inch

Plating Thickness

60μin

Contact Finish Thickness Mating

60.0μin 1.52μm

Number Of Positions Loaded

All

Ambalaj

Bulk

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

12 Weeks

Parça Durumu

Active

Insulation Materials

Polyamide (PA), Nylon

Yayın Yılı

2013

Connector Type

Header
