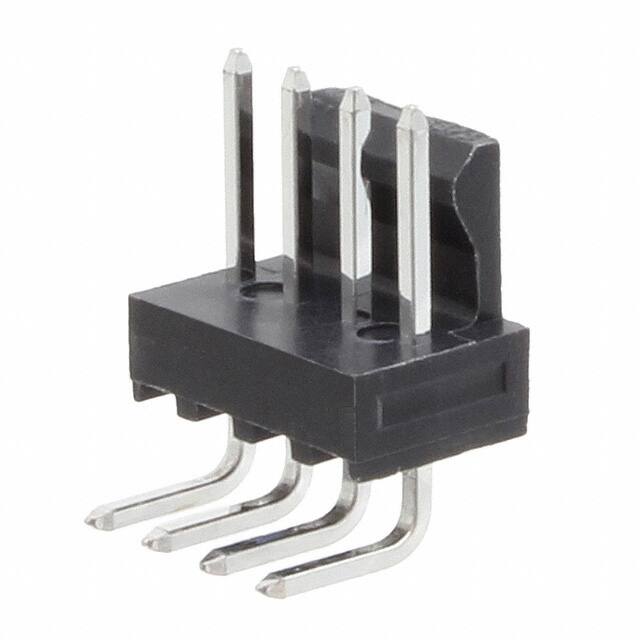

1718570004

Specifications

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

15 Weeks

Parça Durumu

Active

Number Of Positions Loaded

All

Ambalaj

Bulk

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Insulation Materials

Polyamide (PA), Nylon

Connector Type

Header

Yayın Yılı

2013

Applications

Automotive, General Purpose, Medical, Telecommunications

Mounting Option1

LOCKING

Contact Type

Male Pin

Pozisyon Sayısı

4

Reliability

COMMERCIAL

Sıra Sayısı

1

Plating Thickness

60μin

Contact Finish Thickness Mating

60.0μin 1.52μm

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle

Shrouding

Shrouded - 1 Wall

Operating Temperature Max

80°C

Seri

KK 171857

Contact Length Post

0.100 2.54mm

ECCN Kodu

EAR99

Insulation Height

0.250 6.35mm

Insulation Color

Black

Fastening Type

Friction Lock

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Reference Standard

UL, CSA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Style

Board to Board or Cable

Contact Lengthmating

0.265 6.73mm
