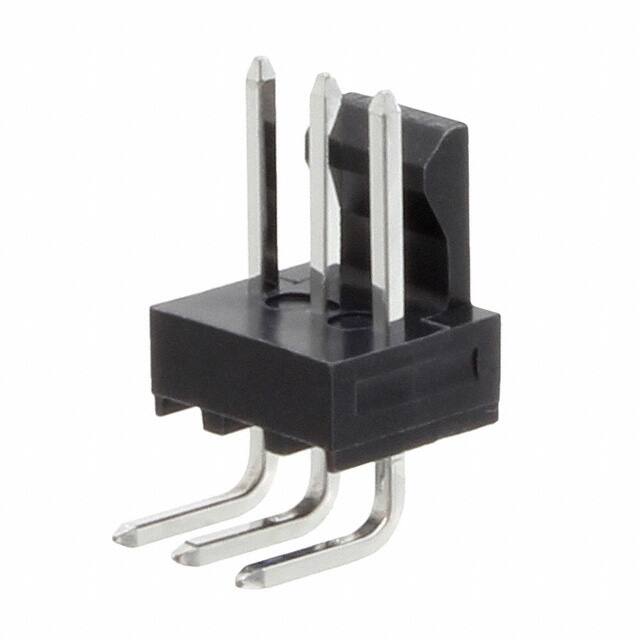

1718570003

Specifications

Body Depth

0.442 inch

Contact Finish Thickness Mating

60.0μin 1.52μm

Plating Thickness

60μin

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Post

60.0μin 1.52μm

Terminal Adımı

2.54mm

Mounting Option1

LOCKING

Contact Type

Male Pin

Pozisyon Sayısı

3

Reliability

COMMERCIAL

Sıra Sayısı

1

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2013

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

14 Weeks

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Ambalaj

Bulk

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

2.502 N

Body Breadth

0.25 inch

Style

Board to Board or Cable

Contact Lengthmating

0.265 6.73mm

Contact Finish Mating

Tin

Contact Shape

Square

Reference Standard

UL, CSA

Insulation Height

0.250 6.35mm

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock
