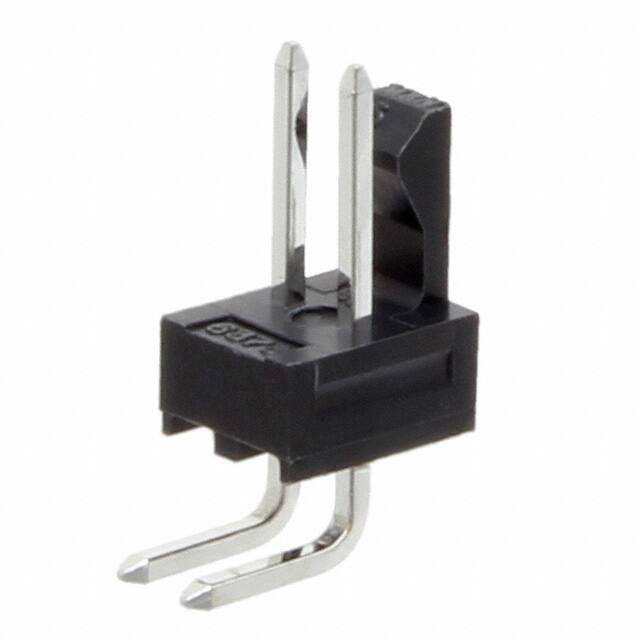

1718570002

Specifications

Reference Standard

UL, CSA

Contact Shape

Square

Contact Lengthmating

0.265 6.73mm

Contact Finish Mating

Tin

Style

Board to Board or Cable

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.100 2.54mm

Seri

KK 171857

Operating Temperature Max

80°C

Shrouding

Shrouded - 1 Wall

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Insulation Height

0.250 6.35mm

ECCN Kodu

EAR99

Sıra Sayısı

1

Reliability

COMMERCIAL

Pozisyon Sayısı

2

Contact Type

Male Pin

Mounting Option1

LOCKING

Contact Materials

Brass

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Post

60.0μin 1.52μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Plating Thickness

60μin

Contact Finish Thickness Mating

60.0μin 1.52μm

Ambalaj

Bulk

Number Of Positions Loaded

All

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Fabrika Tedarik Süresi

15 Weeks

Pcb Contact Pattern

RECTANGULAR

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2013

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.100 2.54mm
