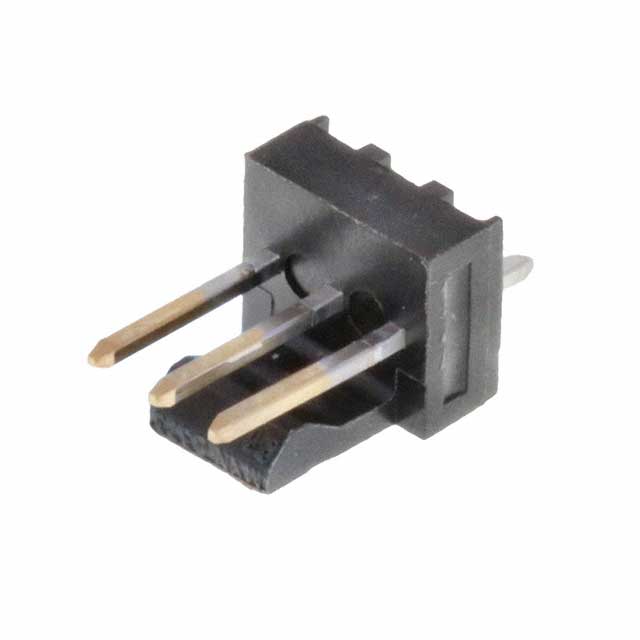

1718564003

Specifications

Fabrika Tedarik Süresi

14 Weeks

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Number Of Positions Loaded

All

Renk

Black

Pitch Mating

0.100 2.54mm

Yayın Yılı

2016

Connector Type

Header

Applications

Automotive, General Purpose, Medical, Telecommunications

Montaj

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Contact Type

Male Pin

Orientation

Vertical

Sıra Sayısı

1

Pozisyon Sayısı

3

Özellikler

Pick and Place

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Finish Thickness Post

100.0μin 2.54μm

Montaj Tipi

Through Hole

Contact Materials

Brass

Terminal

Solder

Overall Contact Length

0.510 12.95mm

RoHS Durumu

ROHS3 Compliant

Seri

KK 171856

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.092 2.34mm

Insulation Height

0.322 8.18mm

Contact Finish Post

Tin

Fastening Type

Friction Lock

Contact Plating

Gold

Insulation Color

Black

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Pitch

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Circuits

3

Contact Finish Mating

Gold

Contact Lengthmating

0.293 7.45mm

Style

Board to Board or Cable
