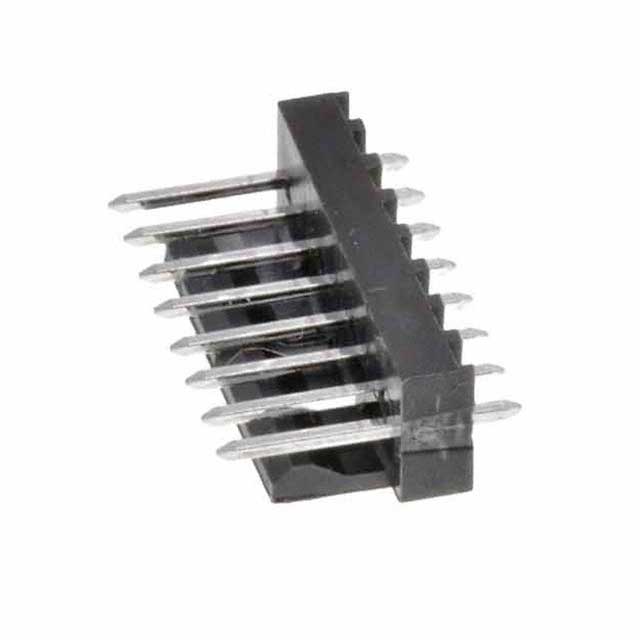

1718563008

Specifications

Contact Shape

Square

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Contact Lengthmating

0.293 7.45mm

Contact Finish Mating

Tin

Shrouding

Shrouded - 1 Wall

Seri

KK 171856

Contact Length Post

0.092 2.34mm

Insulation Height

0.322 8.18mm

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Contact Type

Male Pin

Pozisyon Sayısı

8

Sıra Sayısı

1

Orientation

Vertical

Contact Finish Thickness Mating

60.0μin 1.52μm

Özellikler

Pick and Place

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Overall Contact Length

0.510 12.95mm

Montaj Tipi

Through Hole

Contact Materials

Brass

Contact Finish Thickness Post

60.0μin 1.52μm

Parça Durumu

Active

Fabrika Tedarik Süresi

14 Weeks

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Ambalaj

Tape & Reel (TR)

Pitch Mating

0.100 2.54mm

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Medical, Telecommunications

Montaj

Through Hole

Yayın Yılı

2016

Connector Type

Header
