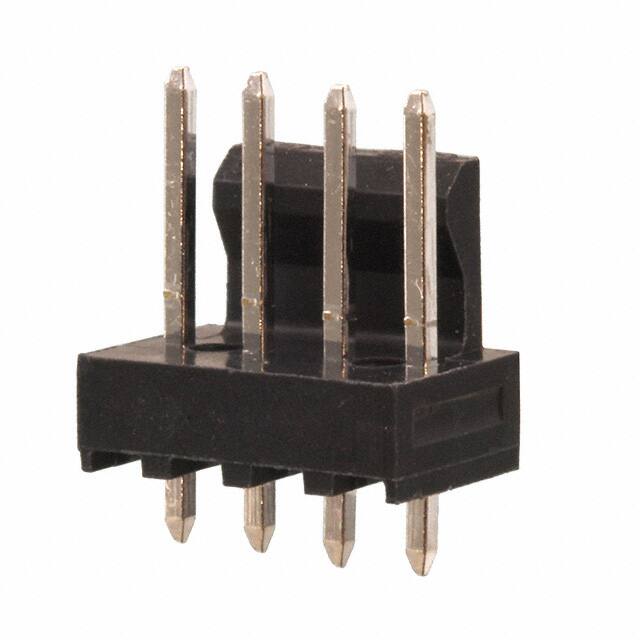

1718563004

Specifications

Pitch Mating

0.100 2.54mm

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2014

Parça Durumu

Active

Fabrika Tedarik Süresi

14 Weeks

Number Of Positions Loaded

All

Ambalaj

Tape & Reel (TR)

Özellikler

Pick and Place

Contact Finish Thickness Mating

60.0μin 1.52μm

RoHS Durumu

ROHS3 Compliant

Overall Contact Length

0.510 12.95mm

Terminal

Solder

Contact Materials

Brass

Montaj Tipi

Through Hole

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Type

Male Pin

Pozisyon Sayısı

4

Sıra Sayısı

1

ECCN Kodu

EAR99

Insulation Height

0.322 8.18mm

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Shrouding

Shrouded - 1 Wall

Seri

KK 171856

Contact Length Post

0.092 2.34mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Contact Lengthmating

0.293 7.45mm

Contact Finish Mating

Tin

Contact Shape

Square
