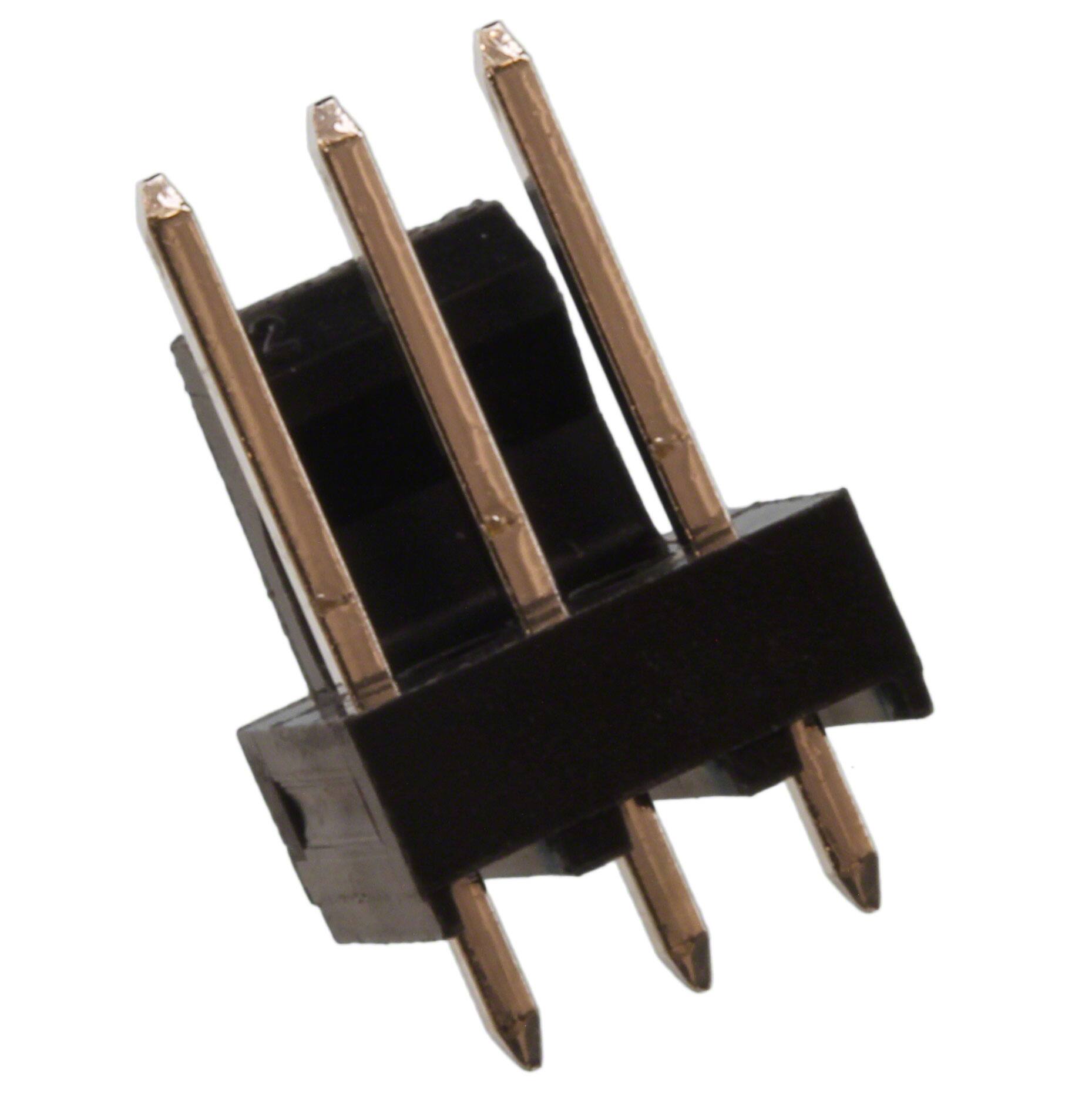

1718563003

Specifications

Contact Materials

Brass

Montaj Tipi

Through Hole

Contact Finish Thickness Post

60.0μin 1.52μm

RoHS Durumu

ROHS3 Compliant

Overall Contact Length

0.510 12.95mm

Terminal

Solder

Özellikler

Pick and Place

Contact Finish Thickness Mating

60.0μin 1.52μm

Sıra Sayısı

1

Pozisyon Sayısı

3

Contact Type

Male Pin

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2014

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.100 2.54mm

Ambalaj

Tape & Reel (TR)

Number Of Positions Loaded

All

Parça Durumu

Active

Fabrika Tedarik Süresi

14 Weeks

Contact Lengthmating

0.293 7.45mm

Contact Finish Mating

Tin

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Fastening Type

Friction Lock

Insulation Color

Black

Insulation Height

0.322 8.18mm

Contact Length Post

0.092 2.34mm

Seri

KK 171856

Shrouding

Shrouded - 1 Wall
