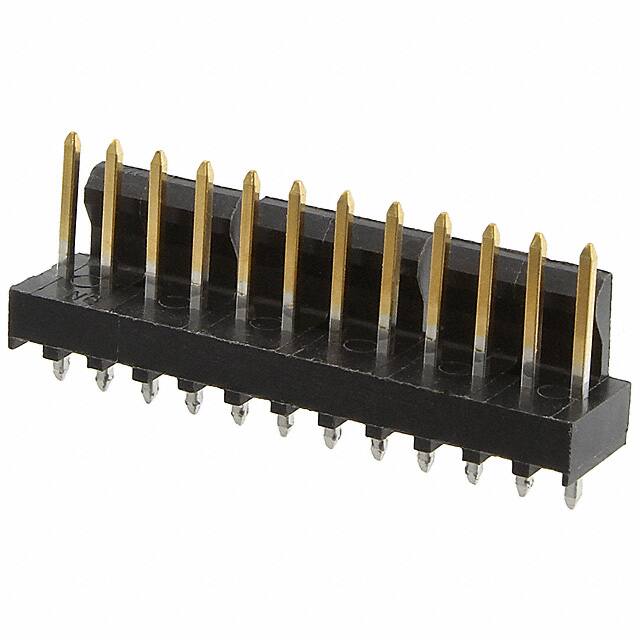

1718561012

Specifications

Insulation Height

0.322 8.18mm

Polarization Key

POLARIZED HOUSING

ECCN Kodu

EAR99

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Seri

KK 171856

Operating Temperature Max

80°C

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.092 2.34mm

Insertion Forcemax

2.502 N

Body Breadth

0.25 inch

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Contact Lengthmating

0.293 7.45mm

Style

Board to Board or Cable

Reference Standard

UL

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2013

Insulation Materials

Polyamide (PA), Nylon

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Bulk

Number Of Positions Loaded

All

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Depth

0.322 inch

Montaj Tipi

Through Hole

Contact Materials

Brass

Contact Finish Thickness Post

100.0μin 2.54μm

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

4A
