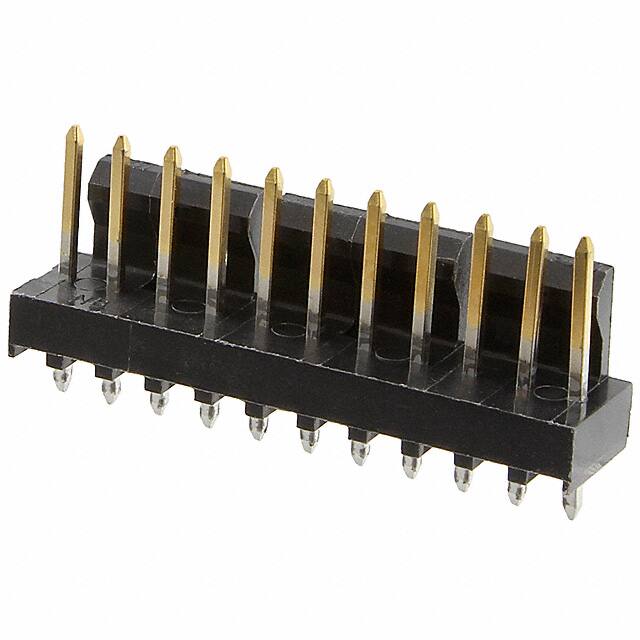

1718561011

Specifications

Contact Finish Mating

Gold

Contact Lengthmating

0.293 7.45mm

Style

Board to Board or Cable

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Reference Standard

UL

Contact Shape

Square

Contact Finish Post

Tin

Fastening Type

Friction Lock

Insulation Color

Black

Material Flammability Rating

UL94 V-2

Polarization Key

POLARIZED HOUSING

Insulation Height

0.322 8.18mm

ECCN Kodu

EAR99

Contact Length Post

0.092 2.34mm

Operating Temperature Max

80°C

Seri

KK 171856

Shrouding

Shrouded - 1 Wall

Contact Finish Thickness Post

100.0μin 2.54μm

Montaj Tipi

Through Hole

Contact Materials

Brass

Rated Current Signal

4A

Terminal

Solder

Overall Contact Length

0.510 12.95mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Depth

0.322 inch

Sıra Sayısı

1

Pozisyon Sayısı

11

Reliability

COMMERCIAL

Contact Type

Male Pin

Mounting Option1

LOCKING

Terminal Adımı

2.54mm

Connector Type

Header

Yayın Yılı

2013

Applications

Automotive, General Purpose, Medical, Telecommunications

Insulation Materials

Polyamide (PA), Nylon
