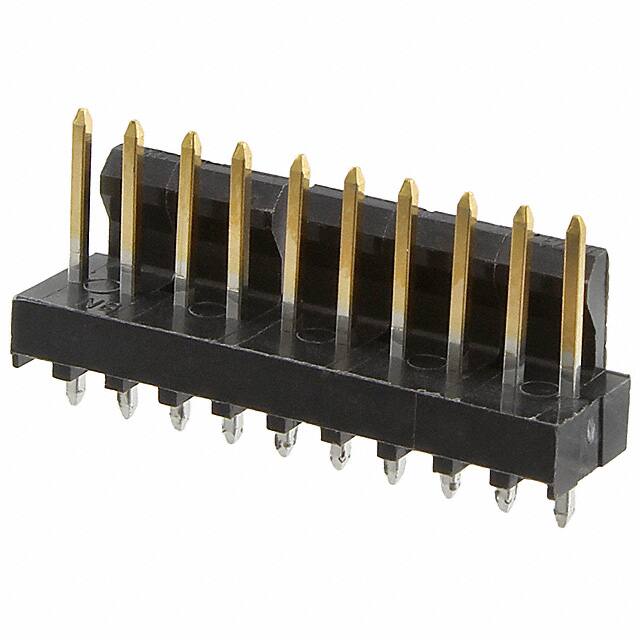

1718561010

Specifications

Body Depth

0.322 inch

Contact Finish Thickness Mating

15.0μin 0.38μm

Overall Contact Length

0.510 12.95mm

Terminal

Solder

Rated Current Signal

4A

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Materials

Brass

Montaj Tipi

Through Hole

Terminal Adımı

2.54mm

Contact Type

Male Pin

Mounting Option1

LOCKING

Pozisyon Sayısı

10

Reliability

COMMERCIAL

Sıra Sayısı

1

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Insulation Materials

Polyamide (PA), Nylon

Yayın Yılı

2013

Connector Type

Header

Applications

Automotive, General Purpose, Medical, Telecommunications

Body Length Or Diameter

0.994 inch

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

11 Weeks

Parça Durumu

Active

Number Of Positions Loaded

All

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Style

Board to Board or Cable

Contact Lengthmating

0.293 7.45mm

Contact Finish Mating

Gold

Contact Shape

Square

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Insulation Height

0.322 8.18mm

Insulation Color

Black
