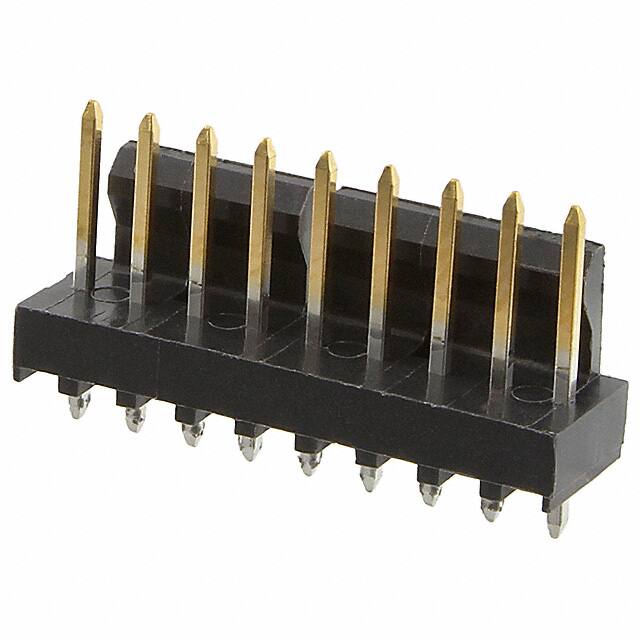

1718561009

Specifications

Contact Shape

Square

Reference Standard

UL

Contact Lengthmating

0.293 7.45mm

Contact Finish Mating

Gold

Style

Board to Board or Cable

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Contact Length Post

0.092 2.34mm

Operating Temperature Max

80°C

Seri

KK 171856

Shrouding

Shrouded - 1 Wall

Contact Finish Post

Tin

Insulation Color

Black

Fastening Type

Friction Lock

Material Flammability Rating

UL94 V-2

Polarization Key

POLARIZED HOUSING

Insulation Height

0.322 8.18mm

Sıra Sayısı

1

Pozisyon Sayısı

9

Reliability

COMMERCIAL

Contact Type

Male Pin

Mounting Option1

LOCKING

Terminal Adımı

2.54mm

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Materials

Brass

Montaj Tipi

Through Hole

Overall Contact Length

0.510 12.95mm

Terminal

Solder

Rated Current Signal

4A

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Depth

0.322 inch

Ambalaj

Bulk

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

11 Weeks

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active
