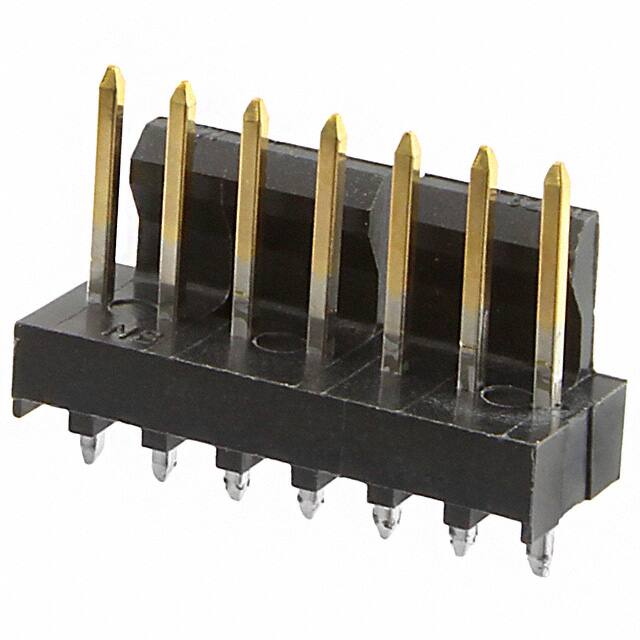

1718561007

Specifications

Reference Standard

UL

Contact Finish Mating

Gold

Insertion Forcemax

2.502 N

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Max

80°C

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-2

Insulation Color

Black

ECCN Kodu

EAR99

Pozisyon Sayısı

7

Mounting Option1

LOCKING

Contact Materials

Brass

Montaj Tipi

Through Hole

Overall Contact Length

0.510 12.95mm

Ambalaj

Bulk

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.100 2.54mm

Contact Shape

Square

Contact Lengthmating

0.293 7.45mm

Style

Board to Board or Cable

Body Breadth

0.25 inch

Number Of Conductors

ONE

Contact Length Post

0.092 2.34mm

Seri

KK 171856

Shrouding

Shrouded - 1 Wall

Fastening Type

Friction Lock

Insulation Height

0.322 8.18mm

Polarization Key

POLARIZED HOUSING

Sıra Sayısı

1

Reliability

COMMERCIAL

Contact Type

Male Pin

Terminal Adımı

2.54mm

Contact Finish Thickness Post

100.0μin 2.54μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder
