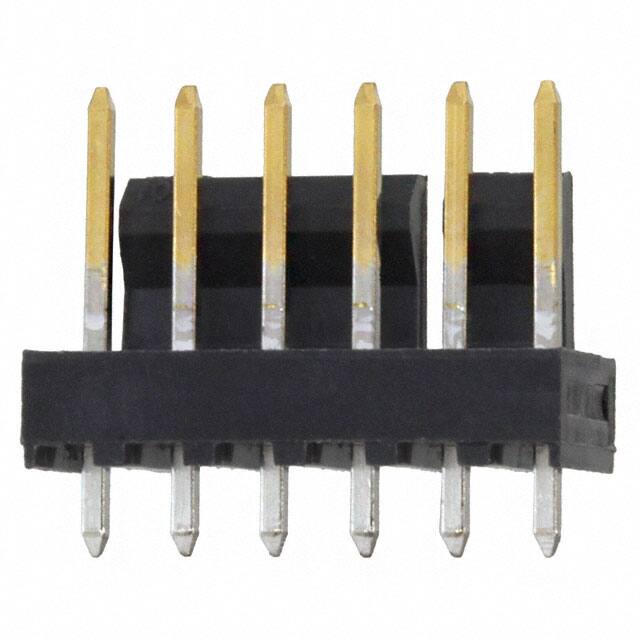

1718561006

Specifications

Lead Length

2.34mm

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Insertion Forcemax

2.502 N

Glow Wire Compliant

Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Weight

678.007195mg

Reference Standard

UL

Pitch Mating

0.100 2.54mm

Applications

Automotive, General Purpose, Medical, Telecommunications

Halogen Free

Low Halogen

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Ambalaj

Bulk

Contact Gender

Male

Contact Materials

Brass

Montaj Tipi

Through Hole

Overall Contact Length

0.510 12.95mm

Orientation

Vertical

Insulation Height

0.322 8.18mm

Polarization Key

POLARIZED HOUSING

Fastening Type

Friction Lock

Seri

KK 171856

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.092 2.34mm

Body Breadth

0.25 inch

Number Of Conductors

ONE

Contact Lengthmating

0.293 7.45mm

Style

Board to Board or Cable

Min. Çalışma Sıcaklığı

-40°C

Contact Shape

Square

Number Of Pcb Rows

1

Montaj

Through Hole

Housing Material

Nylon

Body Length Or Diameter

0.594 inch

Yayın Yılı

2013

Number Of Contacts

6
