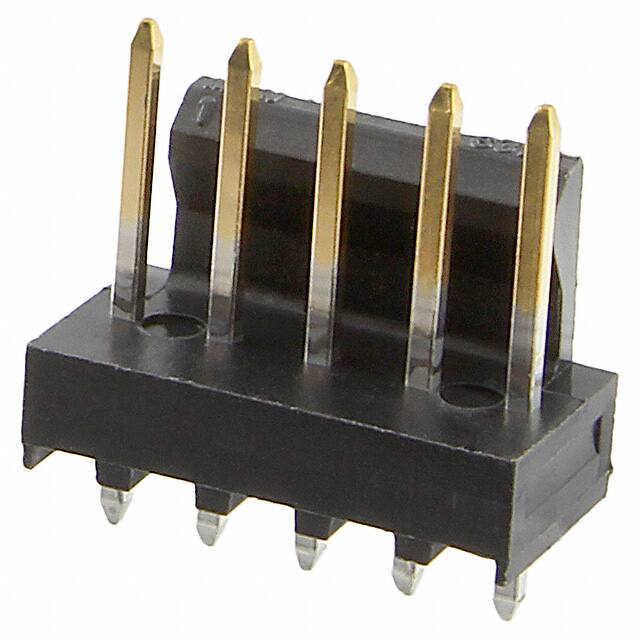

1718561005

Specifications

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.293 7.45mm

Contact Finish Mating

Gold

Style

Board to Board or Cable

Contact Shape

Square

Reference Standard

UL

Insulation Height

0.322 8.18mm

Polarization Key

POLARIZED HOUSING

ECCN Kodu

EAR99

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Seri

KK 171856

Operating Temperature Max

80°C

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.092 2.34mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Depth

0.322 inch

Contact Materials

Brass

Montaj Tipi

Through Hole

Contact Finish Thickness Post

100.0μin 2.54μm

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

4A

Terminal

Solder

Overall Contact Length

0.510 12.95mm

Mounting Option1

LOCKING

Contact Type

Male Pin

Sıra Sayısı

1

Reliability

COMMERCIAL

Pozisyon Sayısı

5

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Applications

Automotive, General Purpose, Medical, Telecommunications

Body Length Or Diameter

0.494 inch

Yayın Yılı

2013

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon
