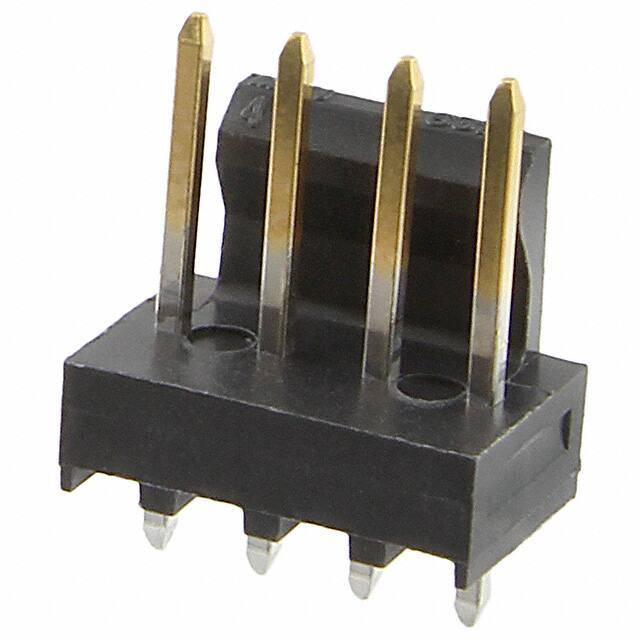

1718561004

Specifications

Pitch Mating

0.100 2.54mm

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Halogen Free

Low Halogen

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Ambalaj

Bulk

Contact Gender

Male

Contact Materials

Brass

Montaj Tipi

Through Hole

Overall Contact Length

0.510 12.95mm

Orientation

Vertical

Lead Length

2.34mm

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Insertion Forcemax

2.502 N

Glow Wire Compliant

Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Weight

448.999747mg

Reference Standard

UL

Number Of Pcb Rows

1

Housing Material

Thermoplastic

Montaj

Through Hole

Yayın Yılı

2013

Number Of Contacts

4

Pcb Contact Pattern

RECTANGULAR

Maks. Çalışma Sıcaklığı

105°C

Fabrika Tedarik Süresi

15 Weeks

Flammability Rating

UL94 V-2

Nominal Gerilim

250V

Number Of Positions Loaded

All

Mating Post Length

7.44mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Akım Değeri

4A

Body Depth

0.322 inch

Contact Finish Thickness Post

100.0μin 2.54μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder
