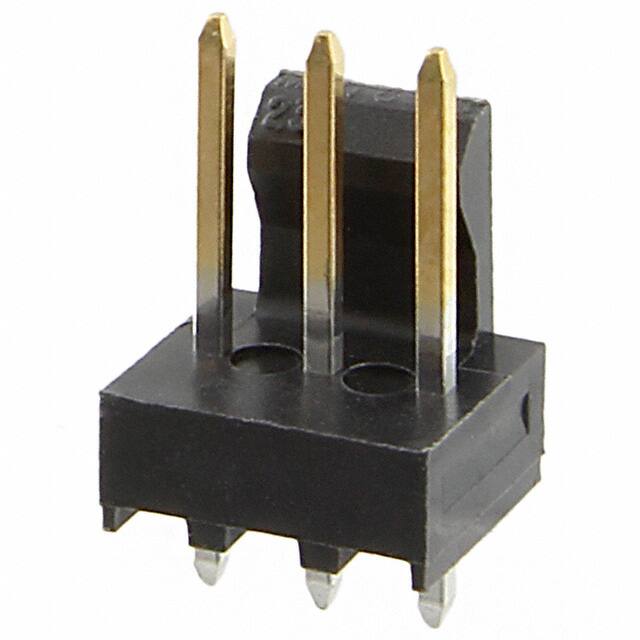

1718561003

Specifications

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Insulation Materials

Polyamide (PA), Nylon

Body Length Or Diameter

0.294 inch

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2013

Parça Durumu

Active

Fabrika Tedarik Süresi

14 Weeks

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Ambalaj

Bulk

Contact Finish Thickness Mating

15.0μin 0.38μm

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

4A

Terminal

Solder

Overall Contact Length

0.510 12.95mm

Montaj Tipi

Through Hole

Contact Materials

Brass

Contact Finish Thickness Post

100.0μin 2.54μm

Terminal Adımı

2.54mm

Contact Type

Male Pin

Mounting Option1

LOCKING

Pozisyon Sayısı

3

Reliability

COMMERCIAL

Sıra Sayısı

1

Insulation Height

0.322 8.18mm

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-2

Fastening Type

Friction Lock

Insulation Color

Black

Contact Finish Post

Tin

Shrouding

Shrouded - 1 Wall

Seri

KK 171856

Operating Temperature Max

80°C

Contact Length Post

0.092 2.34mm

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

2.502 N
