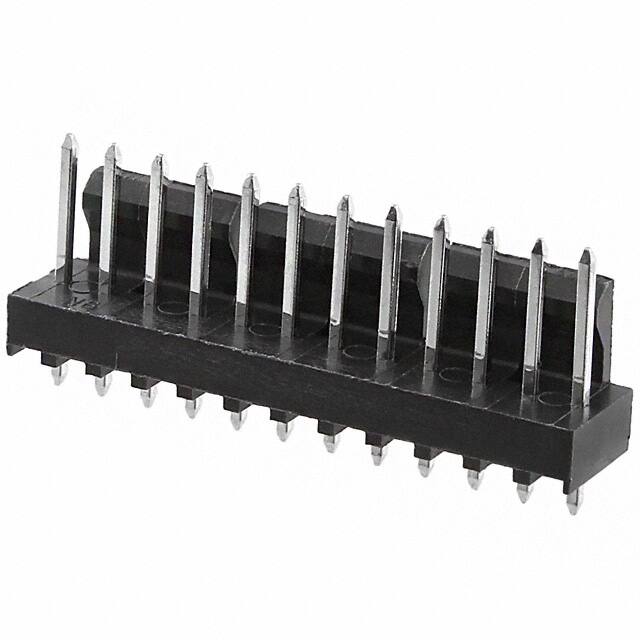

1718560012

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Style

Board to Board or Cable

Contact Finish Mating

Tin

Contact Lengthmating

0.293 7.45mm

Contact Shape

Square

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Insulation Height

0.322 8.18mm

Fastening Type

Friction Lock

Insulation Color

Black

Material Flammability Rating

UL94 V-2

Shrouding

Shrouded - 1 Wall

Operating Temperature Max

80°C

Seri

KK 171856

Contact Length Post

0.092 2.34mm

Body Depth

0.322 inch

Contact Finish Thickness Mating

60.0μin 1.52μm

Plating Thickness

60μin

Rated Current Signal

4A

Terminal

Solder

Overall Contact Length

0.510 12.95mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

60.0μin 1.52μm

Contact Materials

Brass

Montaj Tipi

Through Hole

Terminal Adımı

2.54mm

Contact Type

Male Pin

Mounting Option1

LOCKING

Reliability

COMMERCIAL

Pozisyon Sayısı

12

Sıra Sayısı

1

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Insulation Materials

Polyamide (PA), Nylon

Connector Type

Header

Yayın Yılı

2013
