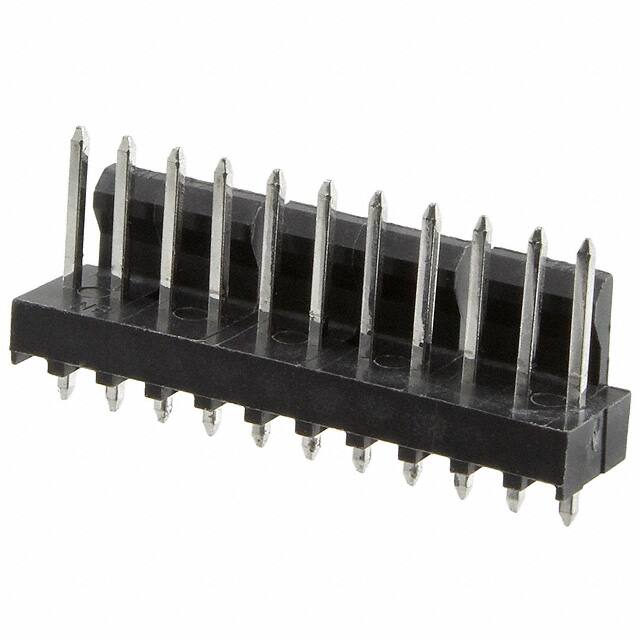

1718560011

Specifications

Seri

KK 171856

Operating Temperature Max

80°C

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.092 2.34mm

Insulation Height

0.322 8.18mm

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Fastening Type

Friction Lock

Contact Shape

Square

Reference Standard

UL

Insertion Forcemax

2.502 N

Body Breadth

0.25 inch

Operating Temperature Min

-40°C

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.293 7.45mm

Contact Finish Mating

Tin

Style

Board to Board or Cable

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

12 Weeks

Ambalaj

Bulk

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Applications

Automotive, General Purpose, Medical, Telecommunications

Yayın Yılı

2013

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon

Mounting Option1

LOCKING

Contact Type

Male Pin

Terminal Adımı

2.54mm

Sıra Sayısı

1

Pozisyon Sayısı

11

Reliability

COMMERCIAL

Contact Finish Thickness Mating

60.0μin 1.52μm

Plating Thickness

60μin

Body Depth

0.322 inch

Montaj Tipi

Through Hole
