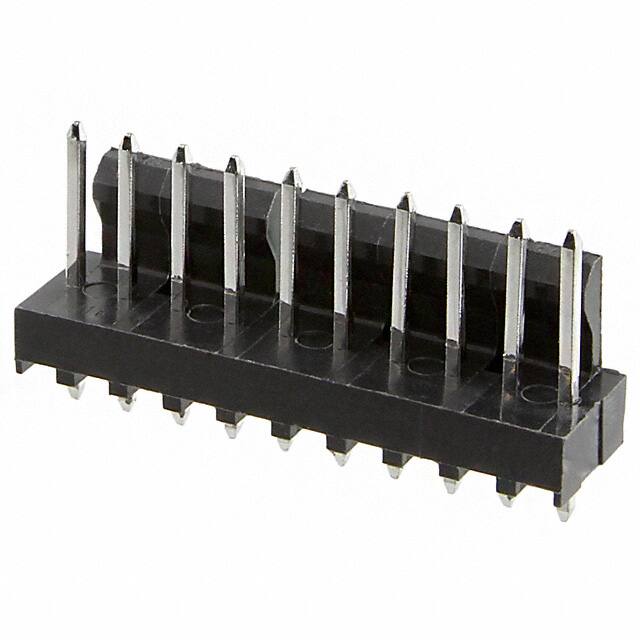

1718560010

Specifications

Pcb Contact Pattern

RECTANGULAR

Maks. Çalışma Sıcaklığı

105°C

Fabrika Tedarik Süresi

14 Weeks

Flammability Rating

UL94 V-2

Nominal Gerilim

250V

Number Of Positions Loaded

All

Number Of Pcb Rows

1

Body Length Or Diameter

0.994 inch

Housing Material

Nylon

Montaj

Through Hole

Yayın Yılı

2013

Contact Type

Male Pin

Terminal Adımı

2.54mm

Sıra Sayısı

1

Reliability

COMMERCIAL

Mating Post Length

7.44mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Akım Değeri

4A

Body Depth

0.322 inch

Contact Finish Thickness Post

60.0μin 1.52μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Rated Current Signal

4A

Seri

KK 171856

Shrouding

Shrouded - 1 Wall

Contact Length Post

0.092 2.34mm

Insulation Height

0.322 8.18mm

Polarization Key

POLARIZED HOUSING

Fastening Type

Friction Lock

Contact Shape

Square

Body Breadth

0.25 inch

Number Of Conductors

ONE

Contact Lengthmating

0.293 7.45mm

Min. Çalışma Sıcaklığı

-40°C

Style

Board to Board or Cable

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Ambalaj

Bulk

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm
