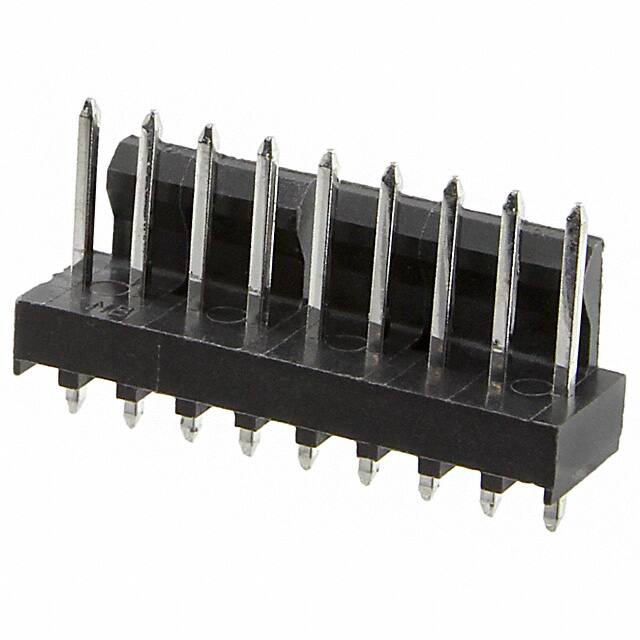

1718560009

Specifications

Insulation Color

Black

Material Flammability Rating

UL94 V-2

Lead Length

2.34mm

Contact Finish Mating

Tin

Weight

1.030987g

Glow Wire Compliant

Compliant

Insertion Forcemax

2.502 N

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Connector Type

Header

Halogen Free

Low Halogen

Applications

Automotive, General Purpose, Medical, Telecommunications

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

Parça Durumu

Active

Montaj Tipi

Through Hole

Contact Materials

Brass

Overall Contact Length

0.510 12.95mm

Plating Thickness

60μin

Contact Gender

Male

Orientation

Vertical

Pozisyon Sayısı

9

Fastening Type

Friction Lock

Polarization Key

POLARIZED HOUSING

Insulation Height

0.322 8.18mm

Contact Length Post

0.092 2.34mm

Seri

KK 171856

Shrouding

Shrouded - 1 Wall

Contact Lengthmating

0.293 7.45mm

Min. Çalışma Sıcaklığı

-40°C

Style

Board to Board or Cable

Body Breadth

0.25 inch

Number Of Conductors

ONE

Contact Shape

Square

Yayın Yılı

2013

Montaj

Through Hole

Housing Material

Nylon

Number Of Pcb Rows

1

Nominal Gerilim

250V
