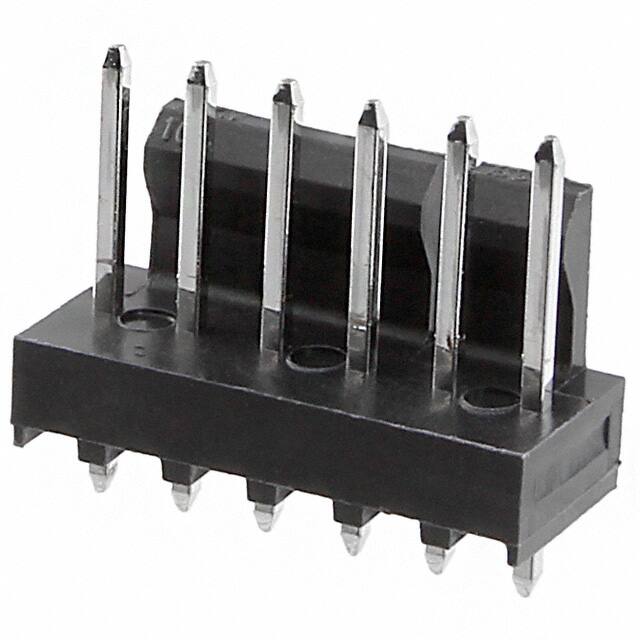

1718560006

Specifications

Reference Standard

UL

Contact Shape

Square

Style

Board to Board or Cable

Contact Lengthmating

0.293 7.45mm

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Body Breadth

0.25 inch

Insertion Forcemax

2.502 N

Contact Length Post

0.092 2.34mm

Shrouding

Shrouded - 1 Wall

Operating Temperature Max

80°C

Seri

KK 171856

Fastening Type

Friction Lock

Insulation Color

Black

Material Flammability Rating

UL94 V-2

Polarization Key

POLARIZED HOUSING

Insulation Height

0.322 8.18mm

Reliability

COMMERCIAL

Pozisyon Sayısı

6

Sıra Sayısı

1

Terminal Adımı

2.54mm

Mounting Option1

LOCKING

Contact Type

Male Pin

Rated Current Signal

4A

Terminal

Solder

Overall Contact Length

0.510 12.95mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

60.0μin 1.52μm

Montaj Tipi

Through Hole

Contact Materials

Brass

Body Depth

0.322 inch

Contact Finish Thickness Mating

60.0μin 1.52μm

Number Of Positions Loaded

All

Ambalaj

Bulk

Fabrika Tedarik Süresi

14 Weeks

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Insulation Materials

Polyamide (PA), Nylon
