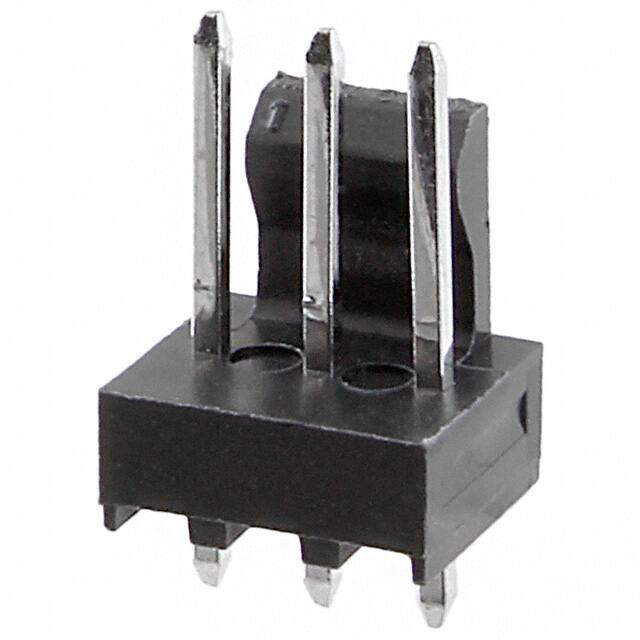

1718560003

Specifications

Parça Durumu

Active

Din Conformance

NO

Ambalaj

Bulk

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Mounting Option1

LOCKING

Pozisyon Sayısı

3

Plating Thickness

60μin

Overall Contact Length

0.510 12.95mm

Montaj Tipi

Through Hole

Contact Materials

Brass

Operating Temperature Max

80°C

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Reference Standard

UL

Mil Conformance

NO

Filter Feature

NO

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

2.502 N

Contact Finish Mating

Tin

Pcb Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Fabrika Tedarik Süresi

15 Weeks

Number Of Positions Loaded

All

Number Of Pcb Rows

1

Body Length Or Diameter

0.294 inch

Yayın Yılı

2013

Terminal Adımı

2.54mm

Contact Type

Male Pin

Reliability

COMMERCIAL

Sıra Sayısı

1

Contact Finish Thickness Mating

60.0μin 1.52μm

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

4A

Terminal

Solder

Contact Finish Thickness Post

60.0μin 1.52μm
