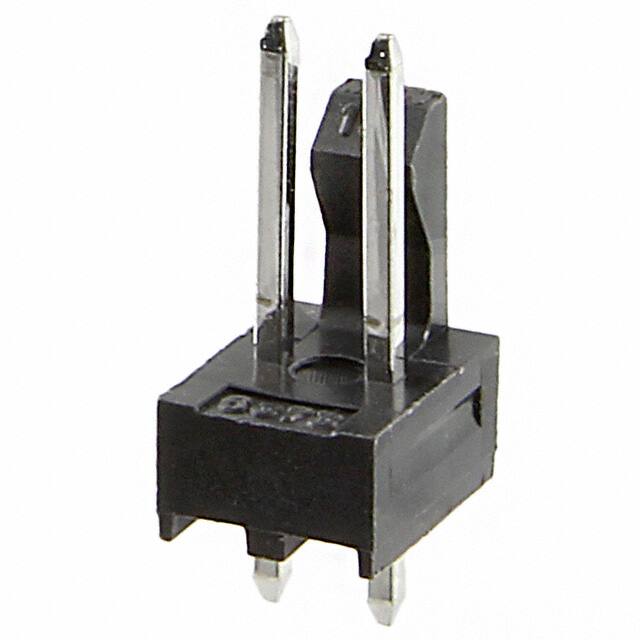

1718560002

Specifications

Shrouding

Shrouded - 1 Wall

Seri

KK 171856

Operating Temperature Max

80°C

Contact Length Post

0.092 2.34mm

Insulation Height

0.322 8.18mm

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-2

Fastening Type

Friction Lock

Insulation Color

Black

Contact Shape

Square

Reference Standard

UL

Number Of Conductors

ONE

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Contact Finish Mating

Tin

Contact Lengthmating

0.293 7.45mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

13 Weeks

Number Of Positions Loaded

All

Ambalaj

Bulk

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

1

Insulation Materials

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Medical, Telecommunications

Connector Type

Header

Yayın Yılı

2013

Contact Type

Male Pin

Mounting Option1

LOCKING

Reliability

COMMERCIAL

Pozisyon Sayısı

2

Sıra Sayısı

1

Contact Finish Thickness Mating

60.0μin 1.52μm

Plating Thickness

60μin

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

4A

Terminal

Solder

Overall Contact Length

0.510 12.95mm

Montaj Tipi

Through Hole
