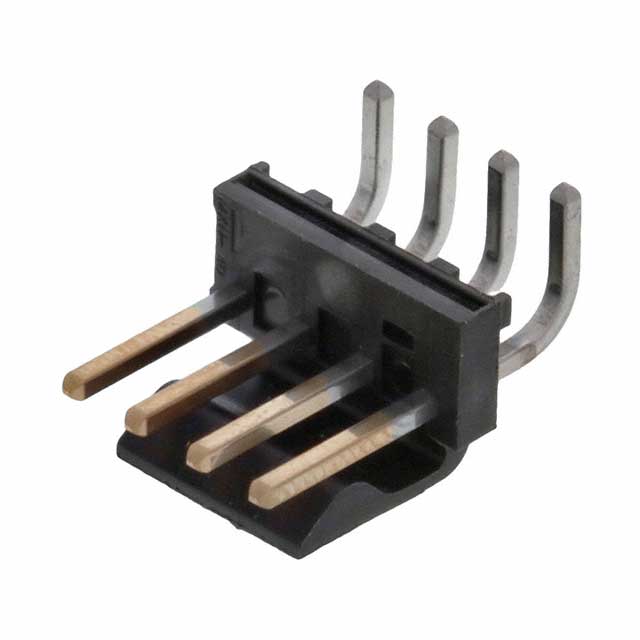

1718144004

Specifications

Fastening Type

Friction Lock

Number Of Conductors

ONE

Fabrika Tedarik Süresi

9 Weeks

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

4

Contact Finish Post

Tin

Mounting Option2

LOCKING

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Pitch Mating

0.156 3.96mm

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Reference Standard

UL, CSA

Insulation Color

Black

Contact Finish Thickness Post

100.0μin 2.54μm

Sıra Sayısı

1

Seri

KK 171814

Withdrawl Forcemin

3.336 N

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.100 2.54mm

Ambalaj

Tape & Reel (TR)

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Mixed Contacts

YES

Insulation Height

0.394 10.00mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Montaj Tipi

Through Hole, Right Angle

Contact Type

Male Pin

Contact Finish Mating

Gold

Parça Durumu

Active

Yayın Yılı

2016

RoHS Durumu

ROHS3 Compliant
