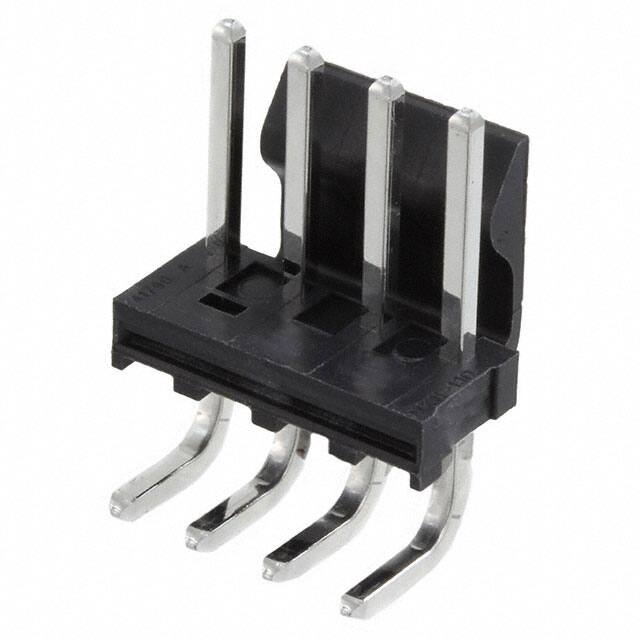

1718143004

Specifications

Nominal Gerilim

600V

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Glow Wire Compliant

Compliant

Akım Değeri

13A

Pitch Mating

0.156 3.96mm

Reach Svhc

Unknown

Number Of Contacts

4

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171814

Sıra Sayısı

1

Insulation Color

Black

Contact Materials

Brass

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

11 Weeks

Halogen Free

Low Halogen

Fastening Type

Friction Lock

Gender

Male

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.394 10.00mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Yayın Yılı

2014

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Mating

Tin

Orientation

Right Angle

Montaj

Through Hole

Ambalaj

Tape & Reel (TR)

Contact Length Post

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm
