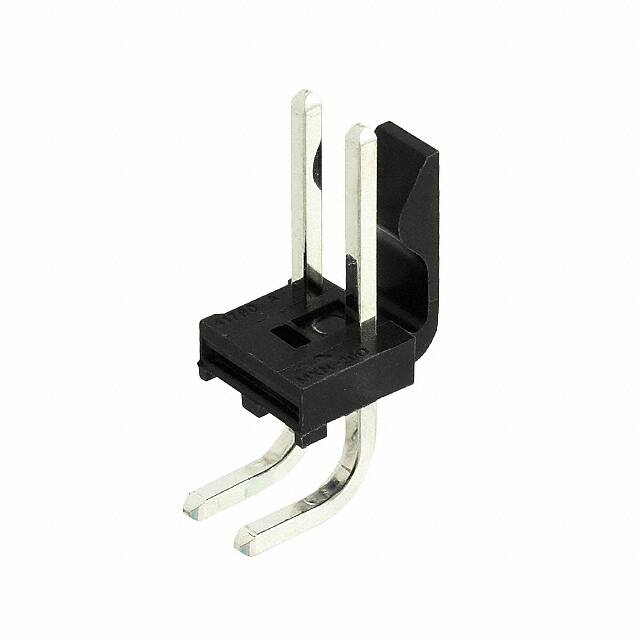

1718143002

Specifications

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Mixed Contacts

YES

Connector Type

Header

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Operating Temperature Min

-40°C

Contact Length Post

0.100 2.54mm

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Tin

Contact Type

Male Pin

JESD-609 Kodu

e3

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2014

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Plating Thickness

60μin

Contact Finish Thickness Mating

60.0μin 1.52μm

Insulation Height

0.394 10.00mm

ECCN Kodu

EAR99

Terminal

Solder

Shrouding

Shrouded - 1 Wall

HTS Kodu

8536.69.40.40

Fastening Type

Friction Lock

Pozisyon Sayısı

2

Contact Materials

Brass

Number Of Positions Loaded

All

Number Of Conductors

ONE

Fabrika Tedarik Süresi

14 Weeks

Mounting Option1

LOCKING

Sıra Sayısı

1

Seri

KK 171814

Contact Finish Thickness Post

60.0μin 1.52μm

Insulation Color

Black

Pitch Mating

0.156 3.96mm

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-2

Contact Shape

Square
