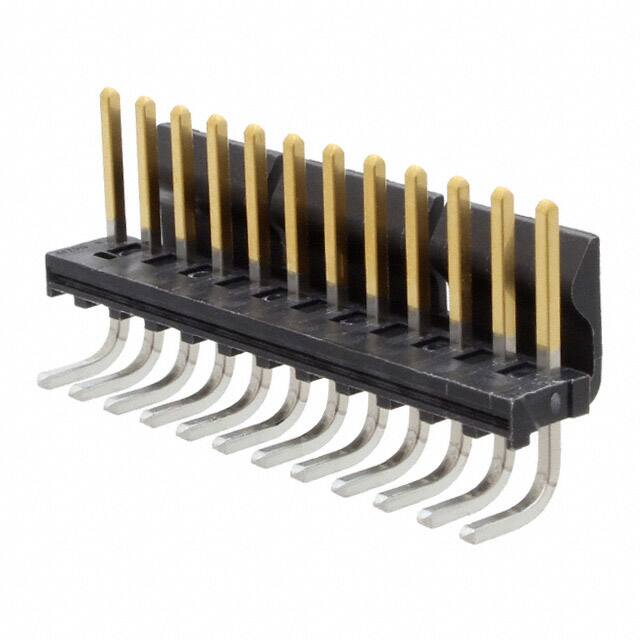

1718141012

Specifications

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Body Depth

0.659 inch

Contact Finish Mating

Gold

Contact Type

Male Pin

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Insulation Height

0.394 10.00mm

Montaj Tipi

Through Hole, Right Angle

Body Breadth

0.394 inch

Connector Type

Header

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Contact Length Post

0.100 2.54mm

Ambalaj

Bulk

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Rated Current Signal

5A

Reference Standard

UL, CSA

Pitch Mating

0.156 3.96mm

Operating Temperature Max

80°C

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Number Of Pcb Rows

1

Durability

25 Cycles

Contact Finish Post

Tin

Number Of Conductors

ONE

Fabrika Tedarik Süresi

14 Weeks
