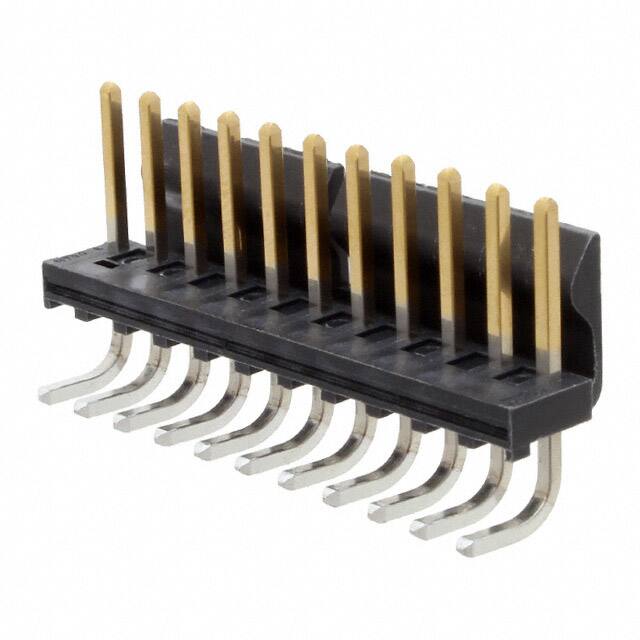

1718141011

Specifications

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Number Of Pcb Rows

1

Durability

25 Cycles

Contact Finish Post

Tin

Fabrika Tedarik Süresi

11 Weeks

Number Of Conductors

ONE

Pozisyon Sayısı

11

Number Of Positions Loaded

All

Contact Materials

Brass

Fastening Type

Friction Lock

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Rated Current Signal

5A

Reference Standard

UL, CSA

Pitch Mating

0.156 3.96mm

Operating Temperature Max

80°C

Body Breadth

0.394 inch

Connector Type

Header

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Ambalaj

Bulk

Contact Length Post

0.100 2.54mm

Reliability

COMMERCIAL

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Body Depth

0.659 inch

Contact Finish Mating

Gold

Contact Type

Male Pin
