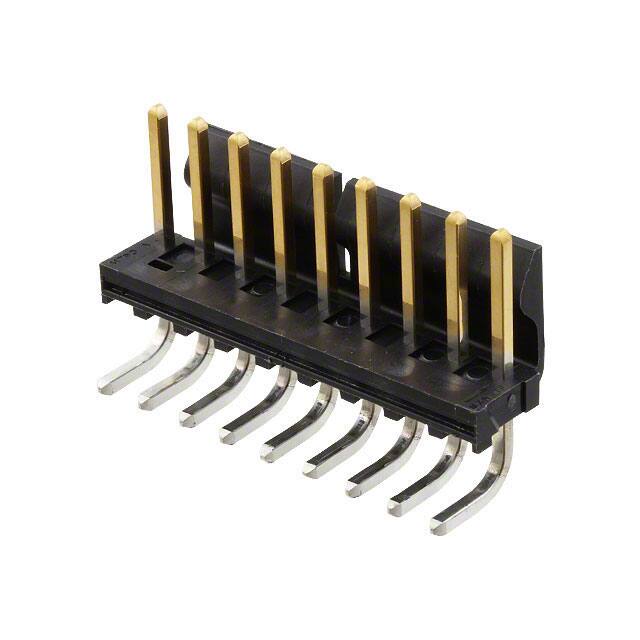

1718141009

Specifications

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Reliability

COMMERCIAL

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Ambalaj

Bulk

Contact Length Post

0.100 2.54mm

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Contact Finish Mating

Gold

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.394 10.00mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Finish Post

Tin

Durability

25 Cycles

Number Of Pcb Rows

1

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Fastening Type

Friction Lock

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

9

Number Of Conductors

ONE

Fabrika Tedarik Süresi

11 Weeks

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Max

80°C

Pitch Mating

0.156 3.96mm

Rated Current Signal

5A

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-2
