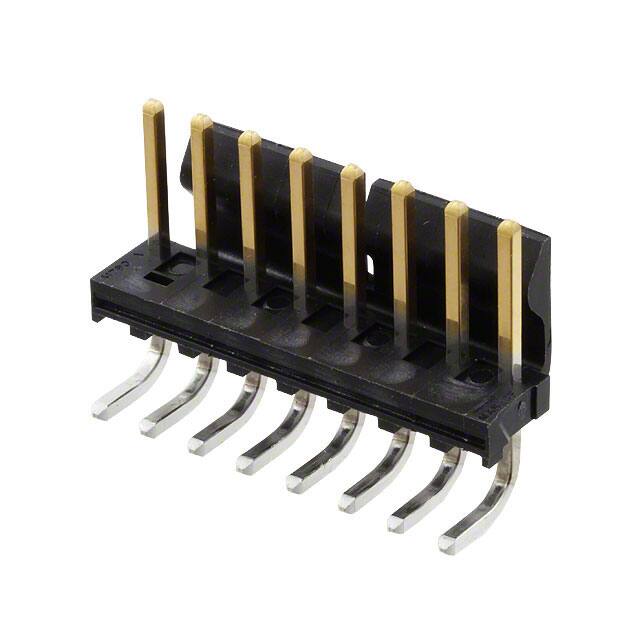

1718141008

Specifications

Pcb Contact Pattern

RECTANGULAR

Mounting Option1

LOCKING

Sıra Sayısı

1

Seri

KK 171814

Contact Finish Thickness Post

100.0μin 2.54μm

Insulation Color

Black

Reference Standard

UL, CSA

Rated Current Signal

5A

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Pitch Mating

0.156 3.96mm

Number Of Pcb Rows

1

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Contact Finish Post

Tin

Durability

25 Cycles

Pozisyon Sayısı

8

Contact Materials

Brass

Number Of Positions Loaded

All

Number Of Conductors

ONE

Fabrika Tedarik Süresi

11 Weeks

Fastening Type

Friction Lock

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Mating

Gold

Body Depth

0.659 inch

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.394 10.00mm

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Body Breadth

0.394 inch

Connector Type

Header

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Length Post

0.100 2.54mm

Ambalaj

Bulk

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)
