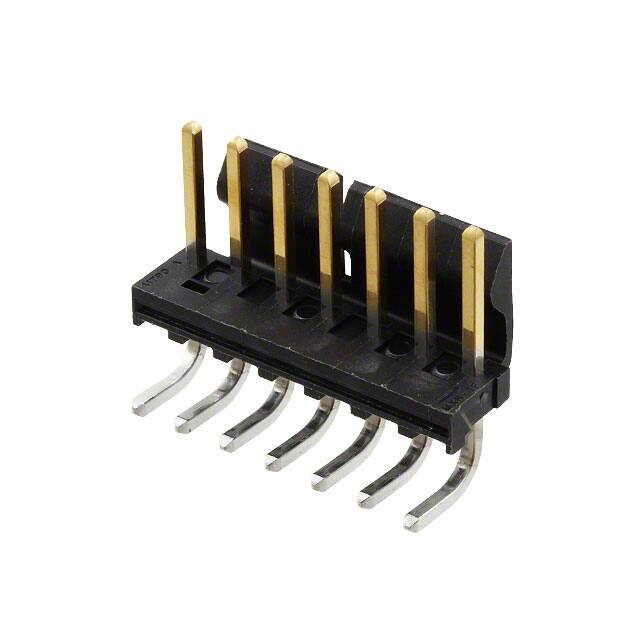

1718141007

Specifications

Insulation Height

0.394 10.00mm

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Montaj Tipi

Through Hole, Right Angle

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Body Depth

0.659 inch

Contact Type

Male Pin

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.100 2.54mm

Ambalaj

Bulk

Operating Temperature Min

-40°C

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Body Breadth

0.394 inch

Connector Type

Header

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Reference Standard

UL, CSA

Rated Current Signal

5A

Pitch Mating

0.156 3.96mm

Operating Temperature Max

80°C

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Mounting Option1

LOCKING

Sıra Sayısı

1

Seri

KK 171814

Contact Finish Thickness Post

100.0μin 2.54μm

Fabrika Tedarik Süresi

11 Weeks

Number Of Conductors

ONE

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

7

Fastening Type

Friction Lock

Shrouding

Shrouded - 1 Wall
