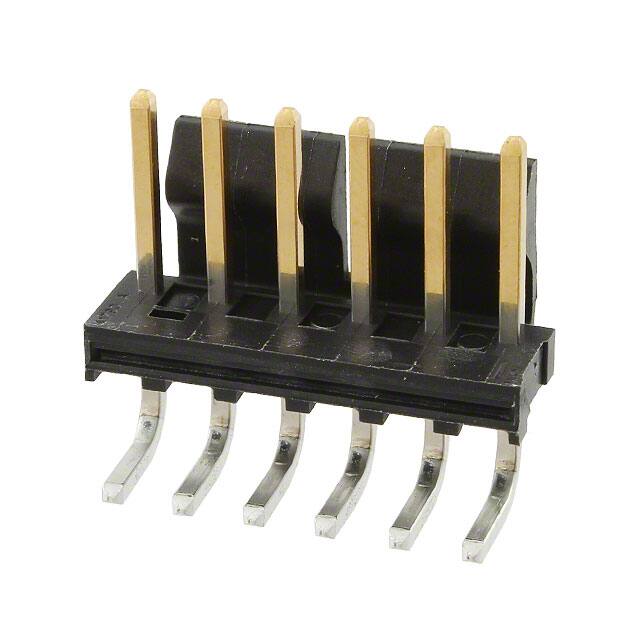

1718141006

Specifications

Fastening Type

Friction Lock

Fabrika Tedarik Süresi

11 Weeks

Number Of Conductors

ONE

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

6

Durability

25 Cycles

ECCN Kodu

EAR99

Contact Finish Post

Tin

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Number Of Pcb Rows

1

Pitch Mating

0.156 3.96mm

Operating Temperature Max

80°C

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Reference Standard

UL, CSA

Rated Current Signal

5A

Insulation Color

Black

Mounting Option1

LOCKING

Sıra Sayısı

1

Seri

KK 171814

Contact Finish Thickness Post

100.0μin 2.54μm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Body Length Or Diameter

0.93 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.100 2.54mm

Ambalaj

Bulk

Operating Temperature Min

-40°C

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Body Breadth

0.394 inch

Connector Type

Header

Insulation Height

0.394 10.00mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Montaj Tipi

Through Hole, Right Angle

Contact Type

Male Pin
