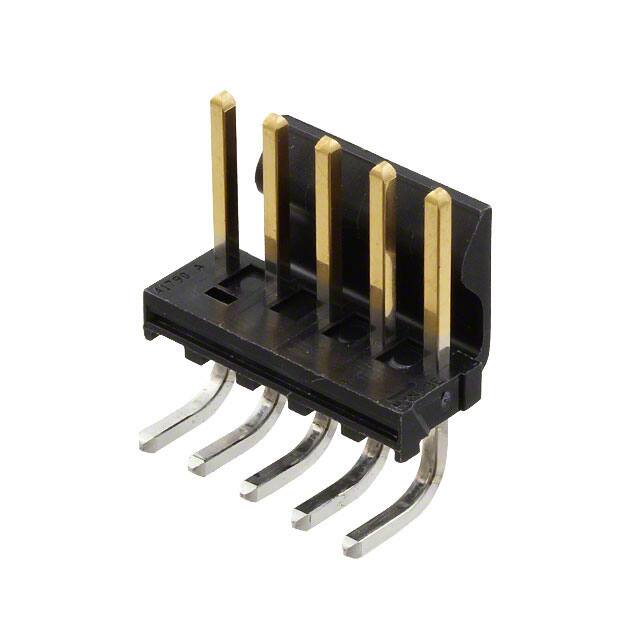

1718141005

Specifications

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Insulation Color

Black

Rated Current Signal

5A

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Operating Temperature Max

80°C

Pitch Mating

0.156 3.96mm

Number Of Pcb Rows

1

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Contact Finish Post

Tin

Pozisyon Sayısı

5

Contact Materials

Brass

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

11 Weeks

Number Of Conductors

ONE

Fastening Type

Friction Lock

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Contact Finish Mating

Gold

Contact Type

Male Pin

Montaj Tipi

Through Hole, Right Angle

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Insulation Height

0.394 10.00mm

Connector Type

Header

Body Breadth

0.394 inch

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm

Operating Temperature Min

-40°C

Ambalaj

Bulk

Contact Length Post

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.774 inch
