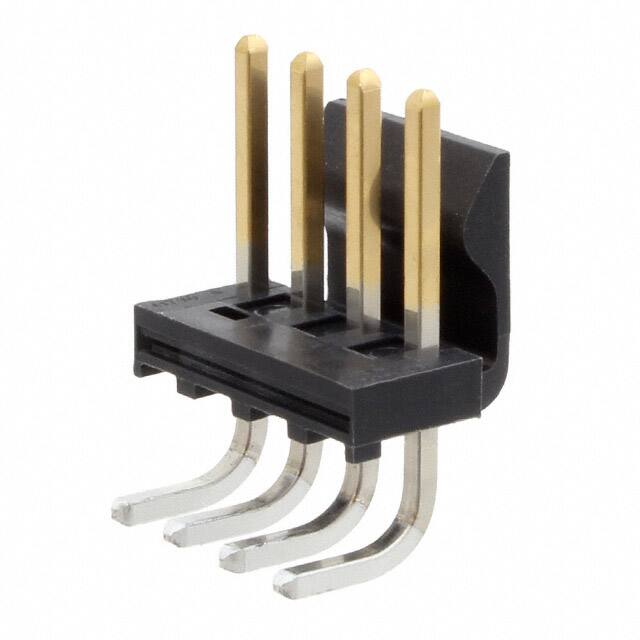

1718141004

Specifications

Contact Finish Post

Tin

ECCN Kodu

EAR99

Durability

25 Cycles

Number Of Pcb Rows

1

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Fastening Type

Friction Lock

Pozisyon Sayısı

4

Contact Materials

Brass

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

15 Weeks

Number Of Conductors

ONE

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Max

80°C

Pitch Mating

0.156 3.96mm

Reference Standard

UL, CSA

Rated Current Signal

5A

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm

Connector Type

Header

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Ambalaj

Bulk

Contact Length Post

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Contact Type

Male Pin

Body Depth

0.659 inch

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle
