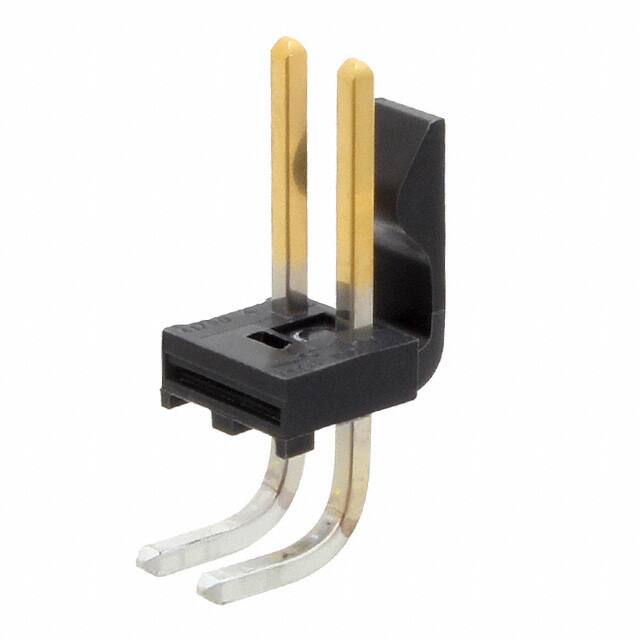

1718141002

Specifications

Body Depth

0.659 inch

Contact Finish Mating

Gold

Contact Type

Male Pin

Parça Durumu

Active

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

15.0μin 0.38μm

Insulation Height

0.394 10.00mm

Montaj Tipi

Through Hole, Right Angle

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm

Connector Type

Header

Body Breadth

0.394 inch

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Reliability

COMMERCIAL

Body Length Or Diameter

0.306 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Contact Length Post

0.100 2.54mm

Ambalaj

Bulk

Insulation Color

Black

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.156 3.96mm

Operating Temperature Max

80°C

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Reference Standard

UL, CSA

Rated Current Signal

5A

Contact Finish Post

Tin

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Number Of Pcb Rows

1

Fastening Type

Friction Lock

Fabrika Tedarik Süresi

14 Weeks

Number Of Conductors

ONE
