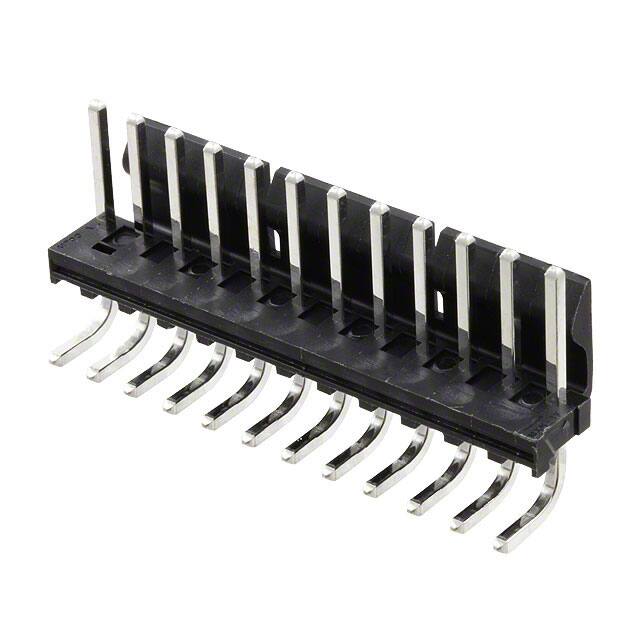

1718140012

Specifications

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Insulation Color

Black

Rated Current Signal

5A

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Operating Temperature Max

80°C

Pitch Mating

0.156 3.96mm

Number Of Pcb Rows

1

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Durability

25 Cycles

Pozisyon Sayısı

12

Contact Materials

Brass

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

12 Weeks

Number Of Conductors

ONE

Fastening Type

Friction Lock

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Mating

Tin

Body Depth

0.659 inch

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.394 10.00mm

Plating Thickness

60μin

Contact Finish Thickness Mating

60.0μin 1.52μm

Terminal Adımı

3.9624mm

Body Breadth

0.394 inch

Connector Type

Header

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm

Contact Length Post

0.100 2.54mm

Ambalaj

Bulk

Operating Temperature Min

-40°C
