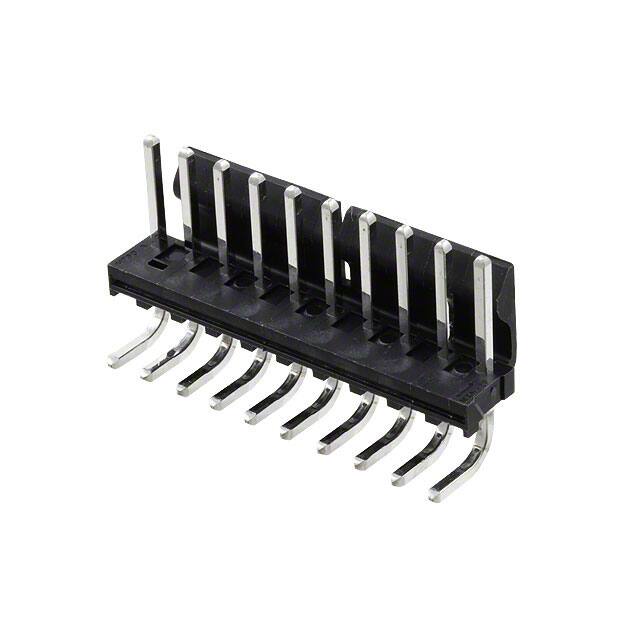

1718140010

Specifications

Plating Thickness

60μin

Contact Finish Thickness Mating

60.0μin 1.52μm

Terminal Adımı

3.9624mm

Insulation Height

0.394 10.00mm

Montaj Tipi

Through Hole, Right Angle

Body Depth

0.659 inch

Contact Finish Mating

Tin

Contact Type

Male Pin

Parça Durumu

Active

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Contact Length Post

0.100 2.54mm

Ambalaj

Bulk

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm

Body Breadth

0.394 inch

Connector Type

Header

Pitch Mating

0.156 3.96mm

Operating Temperature Max

80°C

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Rated Current Signal

5A

Reference Standard

UL, CSA

Insulation Color

Black

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Friction Lock

Fabrika Tedarik Süresi

12 Weeks

Number Of Conductors

ONE

Pozisyon Sayısı

10

Contact Materials

Brass

Number Of Positions Loaded

All
