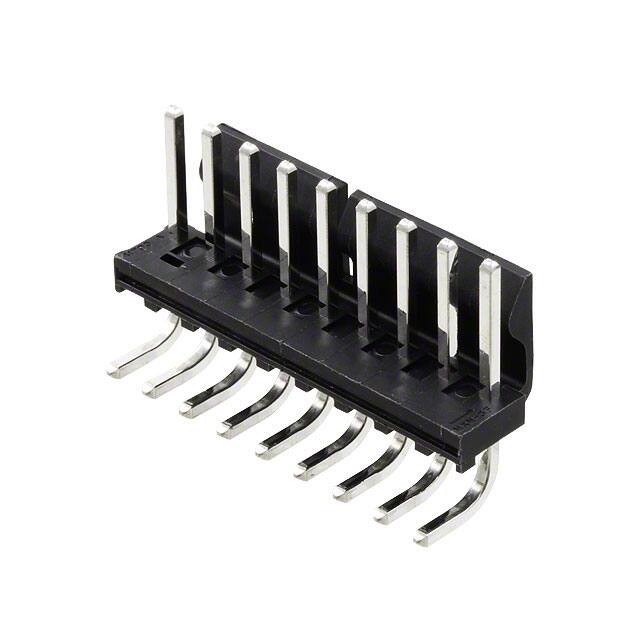

1718140009

Specifications

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Contact Finish Thickness Post

60.0μin 1.52μm

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Max

80°C

Pitch Mating

0.156 3.96mm

Reference Standard

UL, CSA

Rated Current Signal

5A

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Durability

25 Cycles

Number Of Pcb Rows

1

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Fastening Type

Friction Lock

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

9

Number Of Conductors

ONE

Fabrika Tedarik Süresi

12 Weeks

Contact Type

Male Pin

Contact Finish Mating

Tin

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.394 10.00mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Plating Thickness

60μin

Contact Lengthmating

0.446 11.33mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Contact Length Post

0.100 2.54mm

Ambalaj

Bulk

Operating Temperature Min

-40°C
