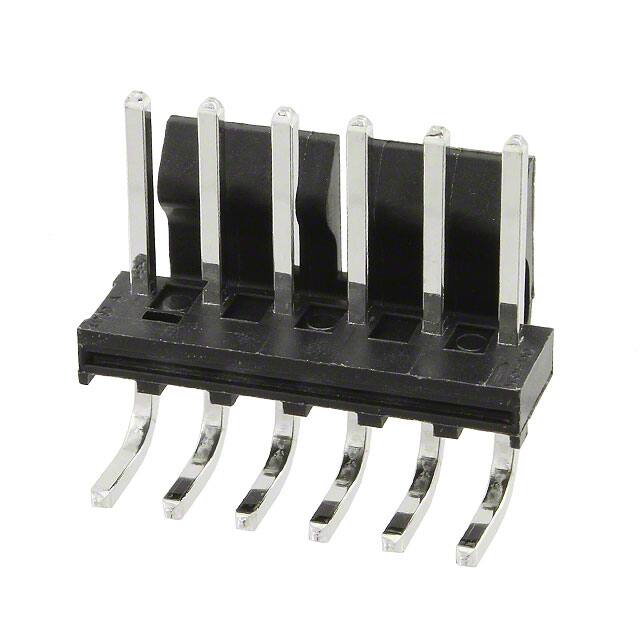

1718140006

Specifications

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Durability

25 Cycles

Mounting Option2

LOCKING

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

14 Weeks

Number Of Conductors

ONE

Pozisyon Sayısı

6

Contact Materials

Brass

Number Of Positions Loaded

All

Fastening Type

Friction Lock

Insulation Color

Black

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171814

Sıra Sayısı

1

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Reference Standard

UL, CSA

Pitch Mating

0.156 3.96mm

Connector Type

Header

Mixed Contacts

YES

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Ambalaj

Bulk

Contact Length Post

0.100 2.54mm

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Parça Durumu

Active

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Contact Type

Male Pin

Contact Finish Thickness Mating

60.0μin 1.52μm

Insulation Height

0.394 10.00mm

Montaj Tipi

Through Hole, Right Angle
