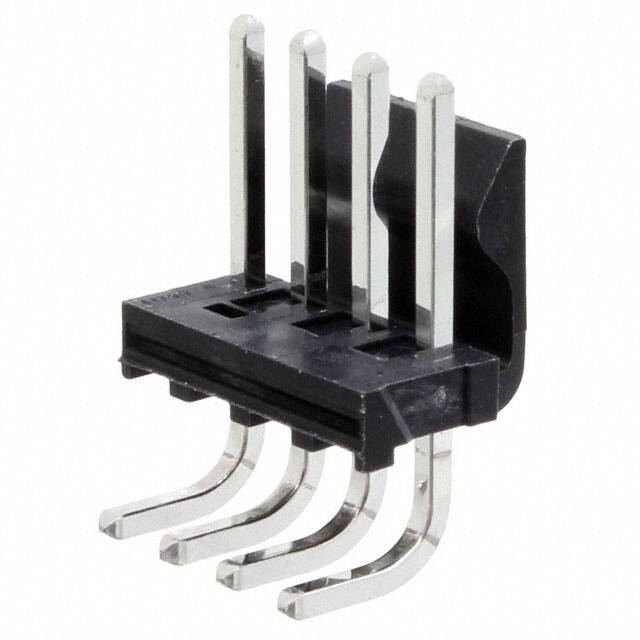

1718140004

Specifications

Durability

25 Cycles

ECCN Kodu

EAR99

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Number Of Pcb Rows

1

Fastening Type

Friction Lock

Fabrika Tedarik Süresi

12 Weeks

Number Of Conductors

ONE

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

4

Insulation Color

Black

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.156 3.96mm

Operating Temperature Max

80°C

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Rated Current Signal

5A

Reference Standard

UL, CSA

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm

Connector Type

Header

Reliability

COMMERCIAL

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Contact Length Post

0.100 2.54mm

Body Depth

0.659 inch

Contact Finish Mating

Tin

Contact Type

Male Pin

Parça Durumu

Active

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

60.0μin 1.52μm

Plating Thickness

60μin
