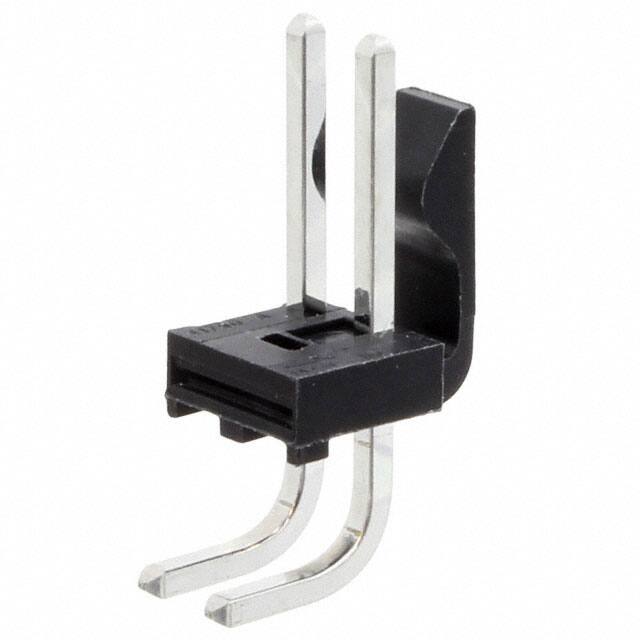

1718140002

Specifications

Pozisyon Sayısı

2

Contact Materials

Brass

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

14 Weeks

Number Of Conductors

ONE

Fastening Type

Friction Lock

Number Of Pcb Rows

1

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Rated Current Signal

5A

Reference Standard

UL, CSA

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Operating Temperature Max

80°C

Pitch Mating

0.156 3.96mm

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Post

60.0μin 1.52μm

Seri

KK 171814

Sıra Sayısı

1

Mounting Option1

LOCKING

Insulation Color

Black

Ambalaj

Bulk

Contact Length Post

0.100 2.54mm

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.306 inch

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Reliability

COMMERCIAL

Connector Type

Header

Body Breadth

0.394 inch

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.446 11.33mm

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.394 10.00mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Plating Thickness

60μin

Yayın Yılı

2013

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active
