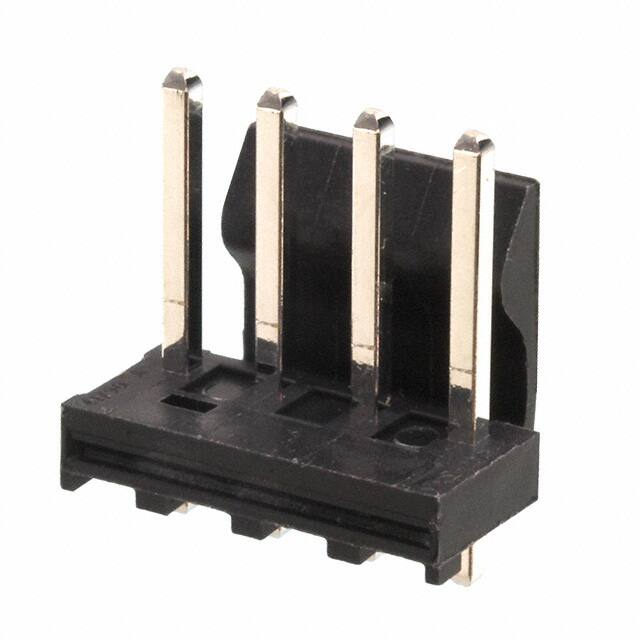

1718133004

Specifications

Overall Contact Length

0.671 17.05mm

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Nominal Gerilim

600V

Akım Değeri

13A

Glow Wire Compliant

Compliant

Pitch Mating

0.156 3.96mm

Reach Svhc

Unknown

Number Of Contacts

4

Sıra Sayısı

1

Seri

KK 171813

Contact Finish Thickness Post

60.0μin 1.52μm

Insulation Color

Black

Number Of Positions Loaded

All

Contact Materials

Brass

Fabrika Tedarik Süresi

14 Weeks

Halogen Free

Low Halogen

Fastening Type

Friction Lock

Gender

Male

Özellikler

Pick and Place

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

60.0μin 1.52μm

Insulation Height

0.446 11.33mm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2014

Parça Durumu

Active

Contact Finish Mating

Tin

Orientation

Vertical

Contact Type

Male Pin

Contact Length Post

0.093 2.35mm

Ambalaj

Tape & Reel (TR)

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Connector Type

Header

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications
