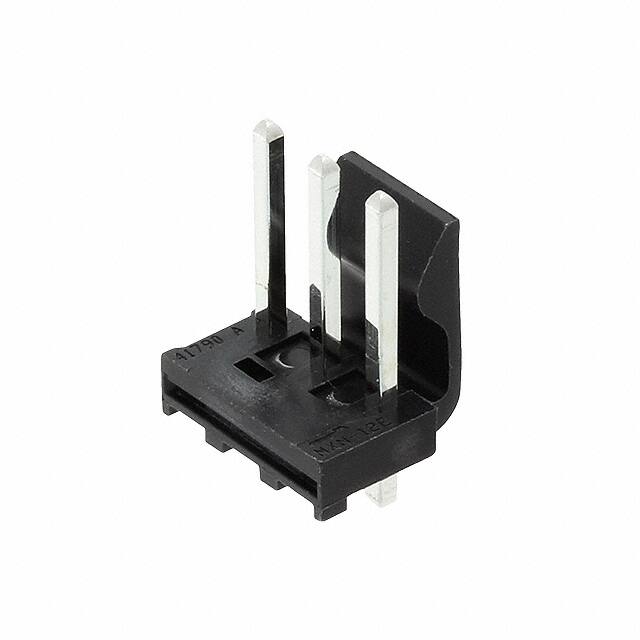

1718133003

Specifications

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Lengthmating

0.448 11.38mm

Connector Type

Header

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Contact Length Post

0.093 2.35mm

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Contact Finish Mating

Tin

Yayın Yılı

2014

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Montaj Tipi

Through Hole

Insulation Height

0.446 11.33mm

Contact Finish Thickness Mating

60.0μin 1.52μm

Özellikler

Pick and Place

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Fastening Type

Friction Lock

Pozisyon Sayısı

3

Contact Materials

Brass

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

14 Weeks

Sıra Sayısı

1

Seri

KK 171813

Contact Finish Thickness Post

60.0μin 1.52μm

Insulation Color

Black

Pitch Mating

0.156 3.96mm

Overall Contact Length

0.671 17.05mm

Contact Shape

Square

Material Flammability Rating

UL94 V-2
