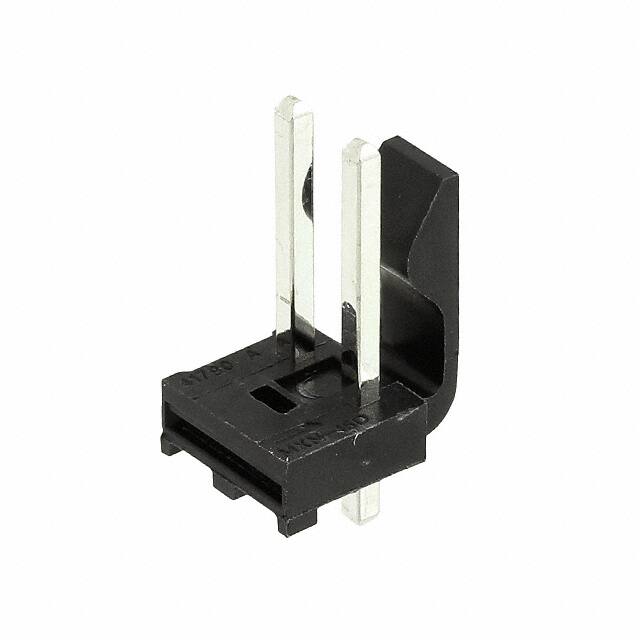

1718133002

Specifications

Özellikler

Pick and Place

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Fastening Type

Friction Lock

Pozisyon Sayısı

2

Contact Materials

Brass

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

14 Weeks

Sıra Sayısı

1

Seri

KK 171813

Contact Finish Thickness Post

60.0μin 1.52μm

Insulation Color

Black

Pitch Mating

0.156 3.96mm

Overall Contact Length

0.671 17.05mm

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Contact Length Post

0.093 2.35mm

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Tin

Contact Type

Male Pin

Yayın Yılı

2014

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

60.0μin 1.52μm

Insulation Height

0.446 11.33mm
