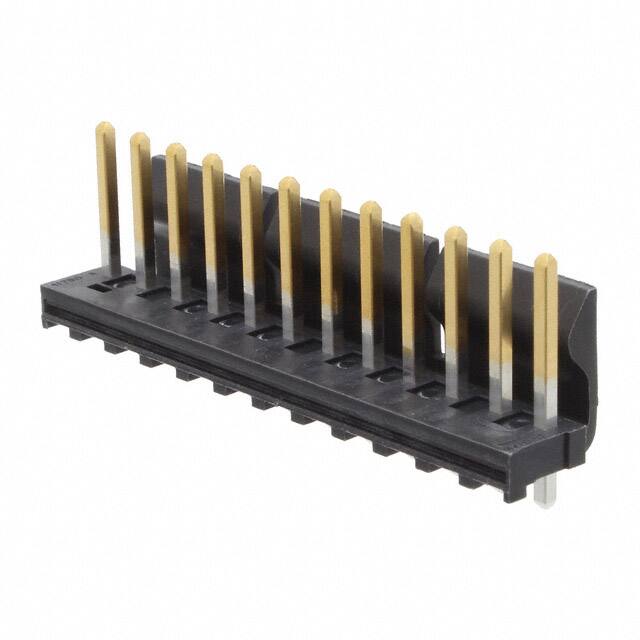

1718131012

Specifications

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Parça Durumu

Active

Contact Finish Mating

Gold

Contact Type

Male Pin

Body Depth

0.446 inch

Montaj Tipi

Through Hole

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Insulation Height

0.446 11.33mm

Length Termination

0.092 inch

Body Breadth

0.394 inch

Insertion Forcemax

3.892 N

Connector Type

Header

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Operating Temperature Min

-40°C

Contact Length Post

0.093 2.35mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Withdrawl Forcemin

.9452 N

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Post

100.0μin 2.54μm

Sıra Sayısı

1

Seri

KK 171813

Insulation Color

Black

Rated Current Signal

7A

Reference Standard

UL, CSA

Overall Contact Length

0.671 17.05mm

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Pitch Mating

0.156 3.96mm

Number Of Pcb Rows

1

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Contact Finish Post

Tin

Durability

25 Cycles
