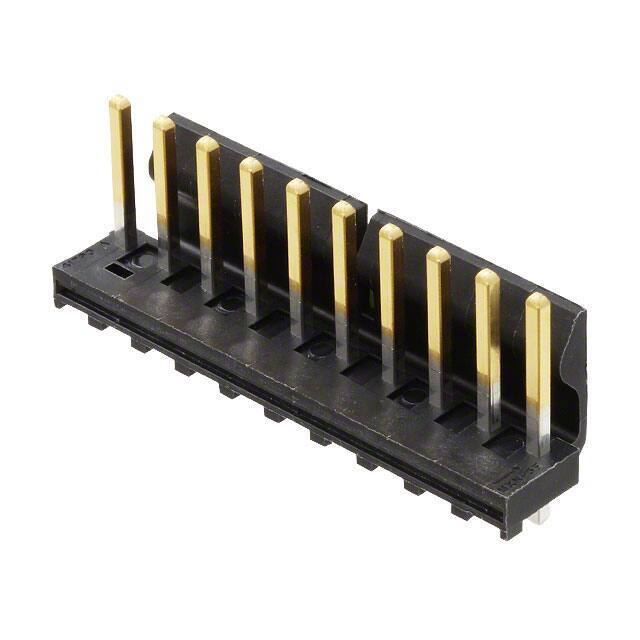

1718131010

Specifications

Contact Length Post

0.093 2.35mm

Ambalaj

Bulk

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Body Breadth

0.394 inch

Insertion Forcemax

3.892 N

Connector Type

Header

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Montaj Tipi

Through Hole

Insulation Height

0.446 11.33mm

Length Termination

0.092 inch

Terminal Adımı

3.9624mm

Contact Finish Thickness Mating

15.0μin 0.38μm

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Mating

Gold

Body Depth

0.446 inch

Pozisyon Sayısı

10

Contact Materials

Brass

Number Of Positions Loaded

All

Number Of Conductors

ONE

Fabrika Tedarik Süresi

11 Weeks

Fastening Type

Friction Lock

Number Of Pcb Rows

1

Shrouding

Shrouded - 1 Wall

Terminal

Solder

Contact Finish Post

Tin

Durability

25 Cycles

Overall Contact Length

0.671 17.05mm

Reference Standard

UL, CSA

Rated Current Signal

7A

Contact Shape

Square

Material Flammability Rating

UL94 V-2

Pitch Mating

0.156 3.96mm
