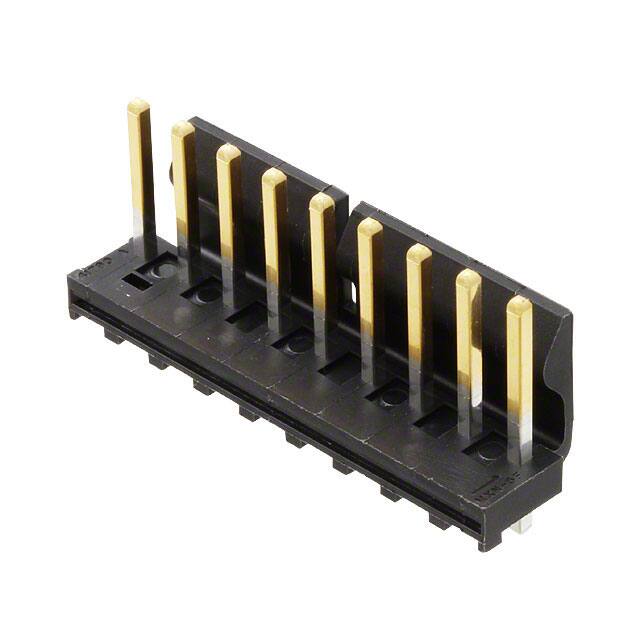

1718131009

Specifications

Contact Finish Post

Tin

Durability

25 Cycles

Number Of Pcb Rows

1

Terminal

Solder

Shrouding

Shrouded - 1 Wall

Fastening Type

Friction Lock

Number Of Positions Loaded

All

Contact Materials

Brass

Pozisyon Sayısı

9

Number Of Conductors

ONE

Fabrika Tedarik Süresi

11 Weeks

Contact Finish Thickness Post

100.0μin 2.54μm

Seri

KK 171813

Sıra Sayısı

1

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.156 3.96mm

Reference Standard

UL, CSA

Rated Current Signal

7A

Overall Contact Length

0.671 17.05mm

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Contact Lengthmating

0.448 11.38mm

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Connector Type

Header

Reliability

COMMERCIAL

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Operating Temperature Min

-40°C

Contact Length Post

0.093 2.35mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Contact Type

Male Pin

Body Depth

0.446 inch

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2013

Parça Durumu

Active

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

15.0μin 0.38μm
