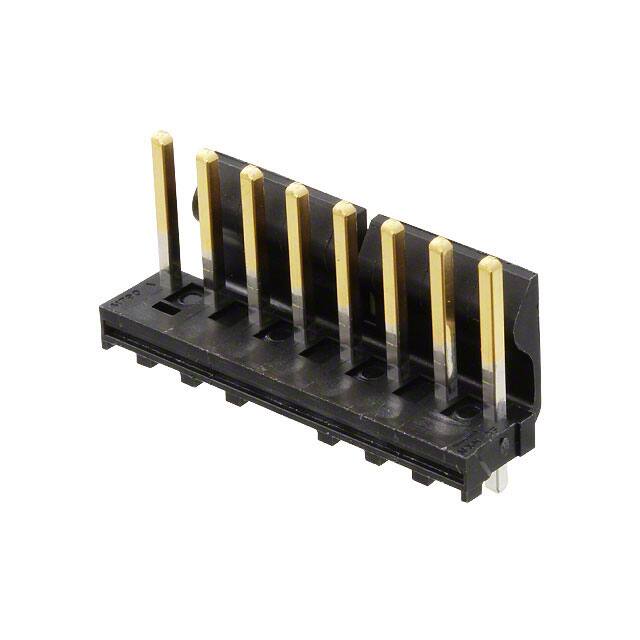

1718131008

Specifications

Insulation Height

0.446 11.33mm

Orientation

Vertical

Contact Finish Mating

Gold

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Style

Board to Board or Cable

Ambalaj

Bulk

Montaj

Through Hole

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Radyasyon Dayanımı

No

Connector Type

Header

Akım Değeri

7A

Material Flammability Rating

UL94 V-2

Contact Shape

Square

Nominal Gerilim

250V

Reference Standard

UL, CSA

Insulation Color

Black

Seri

KK 171813

Number Of Contacts

8

Withdrawl Forcemin

.9452 N

Maks. Çalışma Sıcaklığı

105°C

Mating Post Length

11.38mm

Fastening Type

Friction Lock

Contact Gender

Male

Fabrika Tedarik Süresi

11 Weeks

Number Of Positions Loaded

All

Contact Materials

Brass

Durability

25 Cycles

Contact Finish Post

Tin

Terminal

Solder

Contact Finish Thickness Mating

15.0μin 0.38μm

Terminal Adımı

3.9624mm

Length Termination

0.092 inch

Housing Material

Nylon

Montaj Tipi

Through Hole

Lead Length

2.37mm

Body Depth

0.446 inch

Parça Durumu

Active

Yayın Yılı

2013

Reliability

COMMERCIAL
